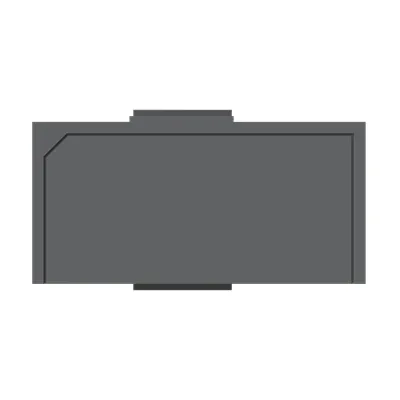

ABB 1SDA102005R1 Accessory - UL Rated Plug 1000A
Part Number: 1SDA102005R1
Quick Summary
ABB 1SDA102005R1 is an accessory that functions as a rating plug for Tmax XT circuit-breakers. This solution enables precise current settings for XT7-XT7M configurations, supporting safe and reliable operation in demanding low-voltage environments. It addresses the challenge of configuring high-capacity protective devices without downtime or invasive modification. The rating plug aligns with UL489 standards and carries CE declaration and RoHS compliance, underscoring safety and environmental responsibility. By standardizing the plug across XT7-XT7M variants, it simplifies stocking, improves BOM accuracy, and reduces field wiring errors. In practice, this translates to faster installation, easier maintenance, and lower total cost of ownership for industrial power distribution systems.
Product Information
Extended Description
1SDA102005R1 ABB: RATING PLUG In=1000 A XT7-XT7M UL
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT7RP1000ULA
EAN
8056221020497
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.025 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020497
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT7-XT7M
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
1000 A
Standards
UL489
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Changing the rating plug for Ekip Touch, Ekip Dip LSI, Ekip Dip LSIG - XT7M - XT7
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature: 1000 A rated current support → Business Impact: Enables safe handling of heavy load peaks and reduces overcurrent risk in Tmax XT systems. Application: SACE Tmax XT protective circuits and XT7-XT7M configurations. Long-tail keywords used: rating plug for Tmax XT, high current accessories, UL489 compliant components. Feature: XT7-XT7M compatibility → Business Impact: Simplifies retrofits and reduces engineering time during upgrades. Application: Spare parts strategy for SACE Tmax XT installations. Feature: Regulatory compliance (UL489, CE, RoHS) → Business Impact: Lowers compliance risk and accelerates procurement cycles. Application: Global manufacturing environments with strict standards. Feature: Packaging and logistics data (EAN 8056221020497, MOQ 1 piece) → Business Impact: Streamlines BOM accuracy and reduces stockouts. Application: Global supply chain and warehouse stocking. Feature: Lightweight design (0.025 kg) and compact packaging → Business Impact: Frees up cabinet space and reduces shipping costs. Application: Modular control panels and compact switchgear assemblies. Feature: Flexible configuration (Loose or configurable) → Business Impact: Enables quick adaptation to design changes without new parts. Application: Retrofit projects and OEM installations. Industry context: These attributes support uptime in critical power distribution, offering measurable efficiency gains and lower total cost of ownership while maintaining alignment with SACE Tmax XT ecosystem.
