ABB 1SDA102007R1 Accessory - UL489 for Tmax XT
Part Number: 1SDA102007R1
Quick Summary

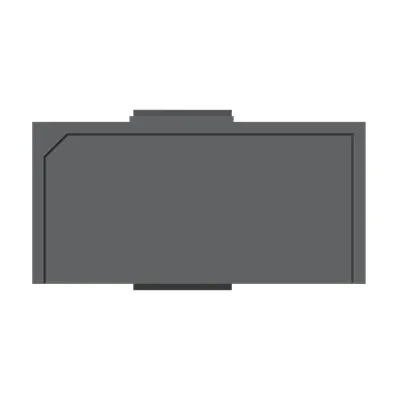

ABB 1SDA102007R1 Accessory is a rating plug for Tmax XT circuit breakers, enabling configurable current ratings up to 1200 A for XT7-XT7M assemblies. This accessory reduces downtime during upgrades and simplifies field configuration by providing a UL489 listed path to set protection levels. It aligns with ABB EcoSolutions, RoHS and REACH declarations, supporting compliant procurement in regulated projects. For engineers and buyers, the rating plug offers predictable installation, clear documentation, and traceability that speeds commissioning while maintaining safety and regulatory compliance across the supply chain.
Product Information
Extended Description
1SDA102007R1 ABB: RATING PLUG In=1200 A XT7-XT7M UL
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT7RP1200ULA
EAN
8056221020510
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.025 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020510
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT7-XT7M
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
1200 A
Standards
UL489
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Changing the rating plug for Ekip Touch, Ekip Dip LSI, Ekip Dip LSIG - XT7M - XT7
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature: Rated current of 1200 A is supported by the plug. Business Impact: Enables direct fault tolerance improvement and precise coordination with Tmax XT devices, reducing miscoordination risk and unnecessary replacements. Application: Suitable for high demand feeders in manufacturing lines and power distribution panels. Feature: UL489 standard compliance. Business Impact: Ensures safe operation with UL and CSA frameworks and easier approvals in US and Canada. Application: Ideal for SACE Tmax XT installations across regulated markets. Feature: Loose or configurable configuration. Business Impact: Installation flexibility reduces retrofit time and allows on site adjustments. Application: Efficient field upgrades to XT7-XT7M without changing the entire breaker. Feature: Comprehensive packaging and documentation. Business Impact: Supports fast procurement with clear data like EAN and minimum order quantity, accelerating project timelines. Application: Procurement and deployment in regulated sectors. Feature: Environmental and compliance declarations. Business Impact: Simplifies audits with RoHS, REACH, CMRT, and TSCA documentation. Application: Supplier qualification and lifecycle management for industrial deployments.
