ABB 1SDA102014R1 Rating Plug Basic - IEC60947-2
Part Number: 1SDA102014R1
Quick Summary
ABB 1SDA102014R1 Rating Plug enables high-current XT7/XT7M Tmax circuit protection accessories. Engineers often struggle with selecting the correct current rating and performing quick, safe field replacements; this rating plug simplifies both tasks by delivering a robust, field-friendly solution. The design aligns with IEC60947-2, and it carries CE conformity and RoHS compliance, supporting sustainable procurement across global facilities. With easy installation, clear documentation, and a compact footprint, it helps reduce downtime, streamline spare-part inventories, and improve overall asset uptime for critical power distribution.
Product Information
Extended Description

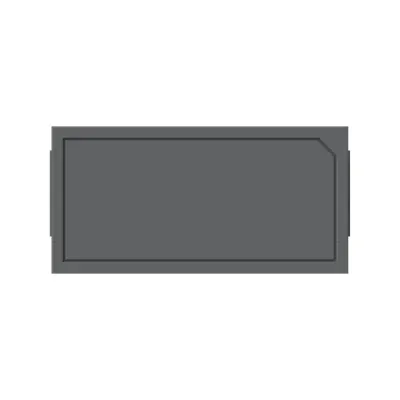

1SDA102014R1 ABB: RATING PLUG BASIC In=1000A XT7-XT7M IEC
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT7RP1000IECB
E-Number (Norway)
4381594
EAN
8056221020589
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.025 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020589
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT7, XT7M
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
1000 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Changing the rating plug for Ekip Dip LS/I - XT7M - XT7
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
