ABB 1SDA102018R1 Accessory - 1250 A, IEC60947-2
Part Number: 1SDA102018R1
Quick Summary

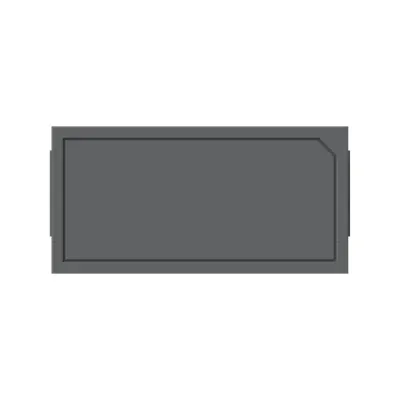

The 1SDA102018R1 is an ABB rating plug for Tmax XT accessories that delivers a 1250 A rating for XT7 and XT7M low-voltage breakers. This accessory enables quick upgrades to higher protection levels without replacing the entire switchgear, reducing downtime and spare-parts costs. It supports IEC 60947-2 compliance and ABB RoHS/REACH declarations, helping you meet global regulatory requirements. Installation is flexible with loose or configurable configurations and clear compatibility with XT7 and XT7M products. The product ships under order code KXT7RP1250IECB for US/Canada, aligning with standard procurement workflows. For engineers, this translates into safer operation, faster maintenance cycles, and predictable performance in critical process environments.
Product Information
Extended Description
1SDA102018R1 ABB: RATING PLUG BASIC In=1250A XT7-XT7M IEC
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT7RP1250IECB
E-Number (Norway)
4381595
EAN
8056221020626
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.025 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020626
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT7, XT7M
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
1250 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Changing the rating plug for Ekip Dip LS/I - XT7M - XT7
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature: 1250 A rated current plug. Business Impact: Enables higher protection margins and avoids costly full-breaker replacements, reducing downtime and spare parts. Application: Ideal for upgrading Tmax XT XT7/XT7M installations where a higher In rating is required without changing the entire assembly. Feature: XT7 and XT7M compatibility. Business Impact: Streamlines field retrofits and ensures reliable compatibility, minimizing non-conformance risks. Application: Directly integrates with existing Tmax XT configurations, simplifying maintenance workflows. Feature: IEC 60947-2 compliance. Business Impact: Supports regulatory acceptance and safer operation, reducing commissioning time. Application: Suitable for electrical distribution panels in manufacturing and process industries. Feature: RoHS, REACH, CMRT, TSCA and EPD declarations. Business Impact: Mitigates supply chain risk and supports sustainability reporting; audits and supplier qualification become easier. Application: Helps procurement meet corporate compliance standards across regions. Feature: US/Canada order code and packaging details (KXT7RP1250IECB). Business Impact: Streamlines procurement and logistics, enabling faster stocking. Application: Useful in maintenance shops, OEM spares, and service contracts across North America. Feature: Loose or configurable installation. Business Impact: Reduces installation time and training needs; supports flexible installation strategies. Application: Fits various Tmax XT accessory installation approaches for XT7/XT7M upgrades.
Get a Quick Quote for a ABB 1SDA102018R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA102018R1?
Enquire Now
FAQs
Yes. The rating plug is designed specifically for Tmax XT accessories and is compatible with XT7 and XT7M breakers. It provides a dedicated 1250 A rating and uses the US/Canada order code KXT7RP1250IECB. It supports installation as a loose or configurable component, enabling field upgrades without replacing the entire switchgear.
It conforms to IEC 60947-2 and carries RoHS and REACH declarations. Additional documentation includes CMRT and TSCA declarations and environmental information such as the EPD reference NoDecNee. This combination supports regulatory compliance, supplier audits, and sustainability reporting across global operations.
Power distribution, manufacturing, and process industries using SACE Tmax XT breakers benefit from higher fault protection margins and reduced downtime during retrofits. The XT7/XT7M compatibility ensures critical processes remain online while protection levels are increased, improving safety and reliability in high-demand applications.
RoHS/REACH compliance, CE declaration references, EAN 8056221020626, and US/Canada order code KXT7RP1250IECB simplify auditing, sourcing, and inventory management. Clear labeling and standardized part numbers help with supplier qualification and reduce substitution risk during audits.
Upgrading existing XT7/XT7M assemblies rather than full replacements minimizes downtime, shortens maintenance cycles, and lowers spare-part costs. This translates to measurable increases in system availability and reduced total cost of ownership for critical processes.
