ABB 1SDA102021R1 Accessory - XT7/XT7M IEC 60947-2
Part Number: 1SDA102021R1
Quick Summary

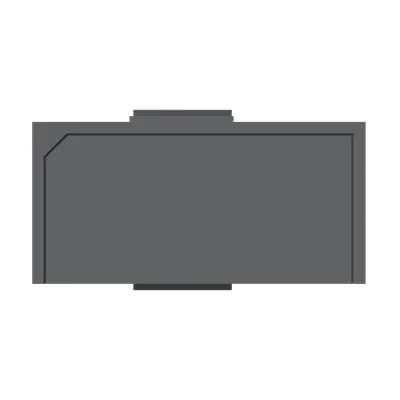

ABB 1SDA102021R1 Accessory is a rating plug for Tmax XT circuit breakers, enabling an exact 800 A setting for XT7 and XT7M assemblies. This component is essential when coordinating protection across modular low-voltage switchgear in data centers, manufacturing lines, and process plants. Field teams often struggle with misconfigured ratings that cause nuisance tripping or delayed maintenance; this plug ensures correct current settings and straightforward retrofits. It aligns with IEC 60947-2 and supports CE conformity, RoHS compliance, and CMRT/TSCA declarations, helping you meet global regulatory requirements. By pairing with ABB’s XT family, it reduces commissioning time and simplifies spare parts management for lifecycle reliability and cost control.
Product Information
Extended Description
1SDA102021R1 ABB: RATING PLUG RC In=800 A XT7-XT7M IEC
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT7RCRP800IEC
E-Number (Norway)
4381597
EAN
8056221020657
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.025 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Height
160 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221020657
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT7, XT7M
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Order Multiple
1 piece
Rated Current (In)
800 A
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Changing the rating plug for Ekip Touch, Ekip Dip LSI, Ekip Dip LSIG - XT7M - XT7
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
UNSPSC
39122221
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27371390
Feature → Business Impact → Application: Rated Current (In) 800 A ensures accurate protection coordination, reducing nuisance trips and downtime in critical power paths; Application: SACE Tmax XT installations in data centers and automated facilities. Feature → Business Impact → Application: Loose or configurable configuration provides installation flexibility for field upgrades and retrofit projects; Application: XT7/XT7M replacements without full cabinet redesign. Feature → Business Impact → Application: IEC 60947-2 compliance with CE and RoHS support mitigates regulatory risk and streamlines procurement; Application: Global projects requiring standardization across regions. Feature → Business Impact → Application: Compatibility with XT7 and XT7M reduces spare parts variety, lowers inventory costs, and speeds commissioning; Application: New builds and lifecycle management in SACE Tmax XT systems. Feature → Business Impact → Application: Ordering code KXT7RCRP800IEC and minimum order quantity of 1 piece simplify procurement workflows; Application: US/Canada deployment and consistent stocking. Feature → Business Impact → Application: CMRT, TSCA, and packaging disposal information provide responsible sourcing and compliance traceability; Application: Corporate sustainability reporting and supplier audits. Industry context notes: ABB’s rating plug strategy for Tmax XT is designed to support outage reduction, predictable maintenance windows, and faster changeouts in harsh industrial environments while maintaining traceable compliance records (EPN, EAN, and RoHS declarations).
Get a Quick Quote for a ABB 1SDA102021R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA102021R1?
Enquire Now
FAQs
Yes. The 1SDA102021R1 is designed as a rating plug for Tmax XT breakers and is suitable for XT7 and XT7M configurations, delivering an 800 A rating and straightforward field retrofit without cabinet modification.
It adheres to IEC 60947-2 and carries CE conformity, RoHS compliance under EU 2011/65/EU with 2015/863, along with CMRT and TSCA declarations, supporting regulatory requirements in global deployments.
The rating plug supports loose or configurable configurations, enabling quick upgrades or replacements in existing Tmax XT installations. This reduces downtime during maintenance and simplifies spare-parts planning for XT7/XT7M systems.
Minimum order quantity is 1 piece, with EAN 8056221020657. For US and Canada, use the ordering code KXT7RCRP800IEC. Packaging details list 1 piece per box with standard dimensions and shipping weight for streamlined logistics.
By ensuring correct 800 A rating and robust compliance, the plug reduces misconfiguration risk, shortens commissioning time, and cuts maintenance costs through predictable performance and easier lifecycle management of SACE Tmax XT systems.
