ABB 1SDA102703R1 Accessory for Tmax XT - UL/CSA
Part Number: 1SDA102703R1
Quick Summary
Accessory for Tmax XT three-pole release provides reliable overcurrent protection for motor circuits in heavy industry environments, maximizing uptime. Design teams often struggle to match relay accessories with UL489 and CSA CS22.2 requirements while maintaining modularity across expanding plant portfolios. This part carries UL489 and CSA CS22.2 standards, CE declaration, and RoHS/REACH compliance to streamline audits and supplier qualification. Used with SACE Tmax XT, it simplifies installation, reduces spare parts, and supports scalable protection across plant outlets. Engineers will appreciate the front-terminal connection, 3P AC/DC operation, and the 210–300 A setting range that align with exact design specs. It also aligns with EAN 8056221023917 and packaging data to speed sourcing and field deployment.
Product Information
Extended Description

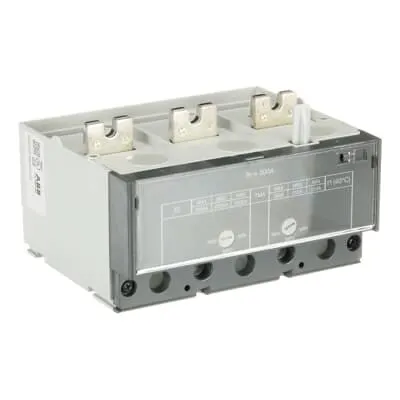

1SDA102703R1 ABB: THERMOMAGNETIC RELEASE THREE-POLE IN AC-DC TMA R 320 I3=1500...3000 UL/CSA XT5
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221023917
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
158 mm
Package Level 1 Height
158 mm
Package Level 1 Depth / Length
188 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8056221023917
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
F
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
3P
Order Multiple
1 piece
Rated Current (In)
300 A
Release
TMA
Release Type
TM
Setting Range
210…300 A
Standards
UL489
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT5-XT6
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
