ABB 1SDA102704R1 Accessory for Tmax XT - UL/CSA
Part Number: 1SDA102704R1
Quick Summary
ABB 1SDA102704R1 is an accessory for Tmax XT that completes a three-pole thermomagnetic release. Engineers often struggle with sourcing compatible accessories for Tmax XT and avoiding incorrect substitutions. This product complies with UL/CSA standards for Tmax XT and provides RoHS and REACH declarations to support compliant design. With a 400 A rating, a setting range of 280–400 A, and a front-terminal connection, it simplifies installation while reducing spare-part costs and inventory complexity for power distribution panels. As part of the SACE Tmax XT accessory family, it ensures reliable coordination with UL489 circuit breakers, and it supports predictable maintenance cycles and faster procurement by aligning with industry standards and supplier ecosystems.
Product Information
Extended Description

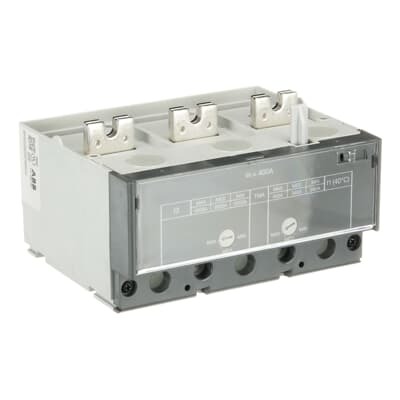

1SDA102704R1 ABB: THERMOMAGNETIC RELEASE THREE-POLE IN AC-DC TMA R 400 I3=2000...4000 UL/CSA XT5
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221023924
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
158 mm
Package Level 1 Height
158 mm
Package Level 1 Depth / Length
188 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
8056221023924
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
F
Configuration Type
Loose or configurable
Current Type
AC/DC
Number of Poles
3P
Order Multiple
1 piece
Rated Current (In)
400 A
Release
TMA
Release Type
TM
Setting Range
280…400 A
Standards
UL489
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Release assembly XT5-XT6
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
ETIM 9
EC001023 - Shunt release (for power circuit breaker)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370418
Feature → Three-pole thermomagnetic release interface for Tmax XT enables proper tripping coordination in three-phase systems, improving protection and reducing nuisance trips. Business Impact → Enhanced system reliability and safer operation in industrial power distribution; Application → Ideal for 3P Tmax XT installations in manufacturing lines and data centers. Feature → Rated current of 400 A with a setting range of 280–400 A provides precise protection tuning. Business Impact → Optimizes breaker coordination, minimizes downtime, and lowers energy waste; Application → Suitable for heavy-duty feeders and motor circuits on XT5 settings. Feature → Loose or configurable configuration type with fixed front-terminal connection offers installation flexibility. Business Impact → Faster deployment, easier retrofits, and safer wiring with standardized terminations; Application → Compatible with front-terminal panels and fixed-connection layouts in control rooms. Feature → Comprehensive compliance package including UL/CSA, RoHS, REACH, CMRT, and TSCA. Business Impact → regulatory assurance and traceable supply chain risk management; Application → Suitable for regulated industries and supply-chain-constrained projects. Feature → Packaging and logistics support with EAN 8056221023924, minimum order quantity 1, and clear weight specs. Business Impact → Streamlined procurement, consistent cycle times, and accurate stock planning; Application → Facilitates global distribution and inventory management for global engineers.
