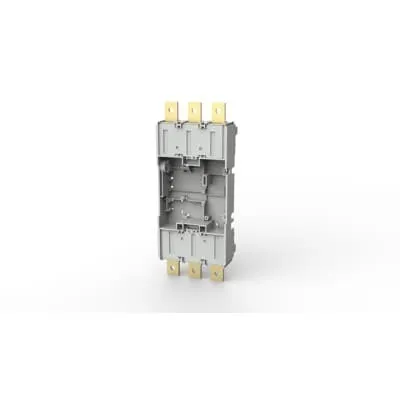

ABB 1SDA104669R1 Accessory - UL489/XT5 3P 600V
Part Number: 1SDA104669R1
Quick Summary
ABB 1SDA104669R1 Accessory is a fixed part for Tmax XT circuit-breakers, designed to support secure 3-pole protection in industrial power panels. The fixed-part design helps minimize installation complexity and retrofit downtime, addressing common field challenges. This ABB ECOsolutions part carries UL489 certification and relevant environmental declarations, including RoHS and REACH, with CMRT and TSCA compliance to meet global sourcing requirements. By aligning with XT5 systems and SACE Tmax XT classes, it delivers predictable spare parts provisioning and easier lifecycle management, supporting faster project timelines and reduced total cost of ownership for panel builders and OEMs.
Product Information
Extended Description
1SDA104669R1 ABB: XT5 P FP 400A 3p EF EF UL
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5UPFPEF4-3
EAN
8015644067618
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8015644067618
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
P
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
400 A
Standards
UL489
Sub-type
XT5
Terminal Connection Type
Plug-In Circuit-Breakers | Front Extended
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for plug-in circuit-breakers XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
Feature: Front-extended, plug-in design for Tmax XT XT5 3P circuit-breakers → Business Impact: Faster installation and reduced wiring errors during field retrofit and panel upgrades → Application: Used in industrial power distribution where rapid deployment is essential. Feature: Rated 400 A at 600 V (AC/DC) → Business Impact: Handles high-current applications with improved reliability and margin → Application: Data centers, manufacturing floors, and process plants requiring robust protection. Feature: Compliance package (UL489, RoHS, REACH, TSCA, CMRT) → Business Impact: Lowers regulatory risk and simplifies global procurement → Application: Global rollouts and cross-border projects with strict sourcing standards. Feature: Environmental and technical data (EPD, packaging disposal) → Business Impact: Supports sustainability goals and responsible packaging choices → Application: ESG-conscious OEM programs and procurement audits. Feature: Clear product compatibility (XT5, SACE Tmax XT) and ordering info (KXT5UPFPEF4-3) → Business Impact: Streamlined sourcing, reduced lead time, and consistent aftermarket support → Application: OEM supply chains and service teams needing reliable spares.
Get a Quick Quote for a ABB 1SDA104669R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA104669R1?
Enquire Now
FAQs
Yes. This fixed-part accessory is designed for the SACE Tmax XT XT5 3P circuit-breakers, featuring a front-extended plug-in connection and a 400 A, 600 V rating. It provides a reliable retrofit path and maintains UL489 compliance for standardization across installations.
The accessory includes UL489 certification and CE conformity, along with RoHS and REACH declarations. It also supports CMRT (Conflict Minerals Reporting Template) and TSCA declarations, ensuring regulatory alignment for global projects.
The XT5 fixed-part is designed for loose or configurable installation with front-extended terminals, enabling quick mounting into Tmax XT panels. It reduces wiring steps, simplifies spare-parts provisioning, and minimizes downtime during maintenance or replacements.
Yes. By standardizing the fixed-part interface for XT5, it enables faster part replacement and easier stock management. The 3P, 400 A rating ensures reliable protection under high-current conditions, contributing to shorter outages and improved uptime.
Order code US and Canada: KXT5UPFPEF4-3; EAN 8015644067618. Minimum order quantity is 1 piece, packaged as box-level single unit (Package Level 1), with a gross weight of 21.7 kg and dimensions roughly 360 mm x 340 mm x 380 mm.
