ABB 1SDA104670R1 Accessory - IEC60947-2
Part Number: 1SDA104670R1
Quick Summary
ABB 1SDA104670R1 Accessory fixed part for Tmax XT XT5 circuit-breakers supports 3P, 690 V, for robust power distribution. Engineers tasked with upgrading Tmax XT systems often confront compatibility and installation delays; this fixed-part solution reduces integration risk by aligning with XT5 mechanical interfaces and terminal arrangements. It carries CE conformity, RoHS compliance, and environmental declarations (EPD, CMRT, TSCA), giving you regulatory assurance across multiple regions. The part is designed for plug-in mounting with rear flat horizontal terminals, enabling faster field replacements and simplified spare-part strategies. By standardizing components, it lowers_inventory complexity and procurement lead times while preserving performance margins in industrial automation environments.
Product Information
Extended Description

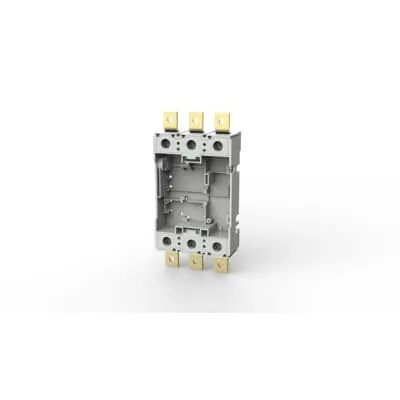

1SDA104670R1 ABB: XT5 P FP 400A 3p HR HR IEC
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5EPFPHR4-3
E-Number (Norway)
4380371
EAN
8015644067625
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8015644067625
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
P
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
690 V AC
Rated Uninterrupted Current (Iu)
400 A
Standards
IEC60947-2
Sub-type
XT5
Terminal Connection Type
Plug-In Circuit-Breakers | Rear flat Horizontal
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for plug-in circuit-breakers XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
