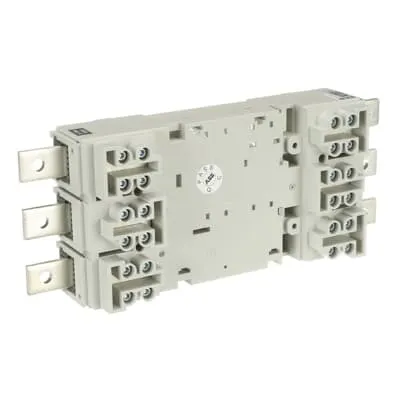

ABB 1SDA104676R1 XT5 Fixed Part - 3P 630A IEC/UL
Part Number: 1SDA104676R1
Quick Summary
ABB 1SDA104676R1 is a fixed-part accessory for SACE Tmax XT XT5 circuit breakers. It enables reliable plug-in installation and straightforward maintenance, reducing field downtime and spare parts complexity. The part supports XT5-compatible configurations and front-extended terminal connections, helping maintain consistent trip coordination across assemblies. It carries multiple certifications, including IEC60947-2 and UL489, along with RoHS, REACH, CMRT, and TSCA declarations, ensuring regulatory compliance across global operations. For procurement and maintenance teams, using this ABB EcoSolutions component simplifies stocking, improves interchangeability with other Tmax XT fixed parts, and strengthens overall project timelines and installation quality.
Product Information
Extended Description
1SDA104676R1 ABB: XT5 P FP 630A 3p EF EF IEC/UL
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5DPFPEF6-3
E-Number (Finland)
3641386
E-Number (Norway)
4380372
EAN
8015644067687
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8015644067687
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
P
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
630 A | 600 A
Standards
IEC60947-2 | UL489
Sub-type
XT5
Terminal Connection Type
Plug-In Circuit-Breakers | Front Extended
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for plug-in circuit-breakers XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
Feature: 3P, 630A rated fixed part for XT5 systems. Business Impact: Robust current handling with clear headroom for peak loads, reducing the risk of nuisance trips. Application: Suitable for 3-pole Tmax XT XT5 panel assemblies in industrial power distribution. Feature: Loose or configurable configuration type. Business Impact: Flexible integration with existing switchgear, streamlining retrofit projects and new builds. Application: Easy adaptation during field upgrades and modular installations. Feature: Front extended terminal connection for plug-in circuit-breakers. Business Impact: Faster, safer wiring with minimized torquing errors; improves installation speed by technicians. Application: High-density control panels and compact switchgear layouts. Feature: Comprehensive compliance package (IEC60947-2, UL489, RoHS, REACH, CMRT, TSCA). Business Impact: Lower regulatory risk and simpler global sourcing, supporting international certifications. Application: Global deployments across manufacturing facilities with strict compliance needs. Feature: Packaging and environmental data (EPD, RoHS status, packaging disposal). Business Impact: Supports sustainability targets and responsible procurement. Application: Corporate ESG reporting and waste-reduction programs for electrical components. Feature: Product family compatibility (XT5, Tmax XT). Business Impact: Streamlines spare-parts strategy and reduces inventory variety, lowering total cost of ownership. Application: Maintenance planning for large-scale automation deployments.
