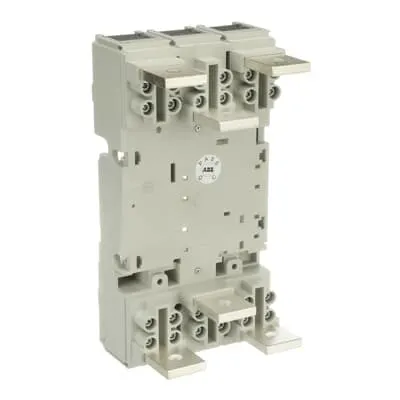

ABB 1SDA104677R1 Fixed Part - XT5 630A IEC/UL
Part Number: 1SDA104677R1
Quick Summary
ABB 1SDA104677R1 fixed part for Tmax XT XT5 circuit-breakers delivers reliable, space-efficient protection in high-demand power distributions. This accessory enables seamless integration with 3-pole XT5 assemblies, reducing installation complexity while maintaining robust protection for industrial MCCs and panels. The design supports loose or configurable mounting, ensuring flexibility across evolving electrical layouts. Compliance and traceability are baked in through CE, UL489, and IEC60947-2 standards, along with environmental declarations like RoHS and CMRT, helping meet supplier audits and regulatory requirements. By choosing this ABB fixed part, you gain predictable lifecycle costs, easier spare parts management, and faster field replacements, translating to lower downtime and improved uptime across critical facilities. Secondary keywords: SACE Tmax XT, fixed parts for Tmax XT, 3P XT5 accessories.
Product Information
Extended Description
1SDA104677R1 ABB: XT5 P FP 630A 3p HR HR IEC/UL
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5DPFPHR6-3
E-Number (Norway)
4380373
EAN
8056221026758
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8056221026758
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
P
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
630 A | 600 A
Standards
IEC60947-2 | UL489
Sub-type
XT5
Terminal Connection Type
Plug-In Circuit-Breakers | Rear flat Horizontal
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for plug-in circuit-breakers XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
Feature: Rated for 3 poles, 630 A and 600 V AC/DC, the fixed part provides robust protection for Tmax XT XT5 assemblies. Business impact: supports high-current distribution with minimal voltage drop and easy interchangeability in modular switchgear. In application terms, it fits XT5 3P plug-in breakers, enabling compact, safer MCCs and panel boards in manufacturing lines. Feature: Loose or configurable configuration enables flexible mounting options without redesigning enclosures. Business impact: reduces part-count, speeds commissioning, and lowers stocking costs for spare parts. In practice, panel builders appreciate the ability to swap or reconfigure with minimal downtime during commissioning or upgrades, particularly in industries like food & beverage or automotive production lines. Feature: Environmental and regulatory declarations—EPD, REACH, RoHS, CMRT, TSCA, and packaging disposal info—provide traceability and audit readiness. Business impact: simplifies compliance workflows, reduces risk of non-conformance, and supports sustainability reporting. Applications include global energy distribution and process industries where supply chains demand clear documentation. Feature: Certifications and standards—IEC60947-2, UL489—plus declaration of conformity and CE references—assure cross-border acceptance. Business impact: smooth international project approvals, faster procurement cycles, and fewer design tolerances in multinational sites. Applications span data centers, water treatment, and cement plants where uptime matters. Feature: Compatibility and installation advantages—order code US/Canada KXT5DPFPHR6-3, E-Number 4380373, EAN 8056221026758, minimum order 1 piece, and packaging details—support accurate sourcing and logistics. Business impact: faster procurement, accurate BOMs, and reliable deliveries to maintenance teams. Industry insight: a well-matched fixed part minimizes field service time and prevents compatibility issues with older Tmax XT kits, improving ROI.
