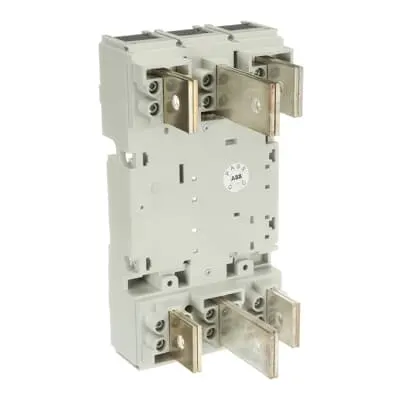

ABB 1SDA104678R1 Accessory XT5 IEC60947-2/UL489
Part Number: 1SDA104678R1
Quick Summary
ABB 1SDA104678R1 Accessory XT5 IEC60947-2/UL489 is a fixed-part solution for Tmax XT XT5 three-pole circuit-breakers, designed to support robust high-current control panels and motor control centers. This loose or configurable part enables reliable protection in demanding environments while simplifying lifecycle management. It carries IEC60947-2 and UL489 approvals, along with RoHS, REACH, TSCA declarations, and an Environmental Product Declaration (EPD) for fixed Tmax XT components. By standardizing on this accessory, engineers can reduce BOM complexity and procurement lead times. The design integrates seamlessly with 3P XT5 assemblies, delivering consistent performance at 50/60 Hz and up to 600 V, translating into faster commissioning, lower field failures, and better total cost of ownership in industrial power distribution.
Product Information
Extended Description
1SDA104678R1 ABB: XT5 P FP 630A 3p VR VR IEC/UL
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5DPFPVR6-3
E-Number (Norway)
4380374
EAN
8015644067700
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8015644067700
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
P
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
630 A | 600 A
Standards
IEC60947-2 | UL489
Sub-type
XT5
Terminal Connection Type
Plug-In Circuit-Breakers | Rear flat Vertical
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for plug-in circuit-breakers XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
Feature 1: 3P, 630 A IU, 600 V ratings. Business Impact: Supports high current without oversized solutions, reducing part count and enabling compact panel designs. Application: Power distribution panels and MCCs that demand reliable, high throughput protection. Feature 2: Loose or configurable mounting. Business Impact: Flexibility accelerates installation and retrofit projects, cutting engineering hours and speeding time to production. Application: New builds and panel upgrades in automation lines. Feature 3: Plug-In Circuit-Breakers with rear flat vertical terminals. Business Impact: Fast, secure termination minimizes installation torque issues and maintenance downtime. Application: Large control cabinets with vertical wiring strategies. Feature 4: Comprehensive compliance suite (IEC60947-2, UL489, RoHS, REACH, TSCA, CMRT, EPD). Business Impact: Regulatory readiness across global sites and simpler supplier audits. Application: Industrial facilities with strict environmental and safety requirements. Feature 5: Packaging and logistics data (1 piece per box, 21.7 kg per unit). Business Impact: Predictable handling, accurate stock planning, and streamlined inbound logistics. Application: Warehouse operations and global distribution for spare parts. Feature 6: XT5 compatibility and SACE Tmax XT ecosystem alignment. Business Impact: Reduces integration risk and ensures long term availability of spare parts. Application: Control rooms, data centers, and manufacturing floors that rely on Tmax XT.
