ABB 1SDA104695R1 Accessory - 630A XT5 IEC/UL
Part Number: 1SDA104695R1
Quick Summary
ABB 1SDA104695R1 is an XT5 fixed-part accessory for Tmax XT with 4 poles, enabling secure 630 A operation. In the field, correct configuration of fixed parts can prevent misassembly, downtime, and noncompliance during routine maintenance or upgrades. This product carries IEC60947-2 and UL489 certifications, alongside RoHS and REACH declarations, supporting broad global deployment and regulatory alignment. By pairing with XT5 withdrawable breakers, it simplifies protective schemes and streamlines spare-part inventories. For engineers managing complex power distribution, reliable accessories like this one translate into safer installations, easier maintenance, and lower total cost of ownership over the life of the system. Compatible with rear flat vertical terminals and configurable options, it supports scalable, modular protection architectures.
Product Information
Extended Description

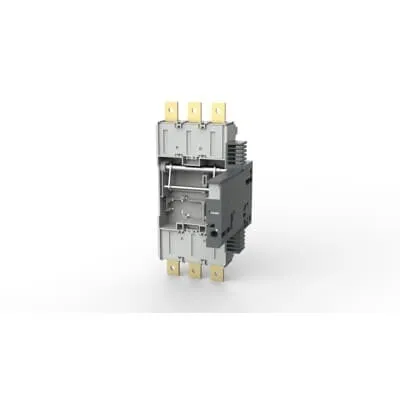

1SDA104695R1 ABB: XT5 W FP 630A 4p VR VR IEC/UL
Environmental Product Declaration - EPD
EPD Fixed parts Tmax XT XT5 (IT)
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5DWFPVR6-4
E-Number (Norway)
4380498
EAN
8015644067878
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
21.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
340 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Gross Weight
21.7 kg
Package Level 1 EAN
8015644067878
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Fixed Part
Suitable For
XT5
Suitable for Product Class
SACE Tmax XT
Version
W
Configuration Type
Loose or configurable
Number of Poles
4P
Order Multiple
1 piece
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
600 V AC | 600 V DC
Rated Uninterrupted Current (Iu)
630 A | 600 A
Standards
IEC60947-2 | UL489
Sub-type
XT5
Terminal Connection Type
Withdrawable Circuit-Breakers | Rear flat Vertical
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
Fixed part for withdrawable circuit-breakers - XT5
ETIM 8
EC002043 - Chassis part power circuit breaker
ETIM 9
EC002043 - Chassis part power circuit breaker
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370422
Feature: 4-pole configuration with 50/60 Hz, 600 V operating capability. Business Impact: Enables safe, scalable protection for Tmax XT in industrial facilities, reducing voltage stress and improving trip coordination. Application: Suitable for 630 A Iu and XT5 fixed-part installations in manufacturing lines and data centers. Feature: Fixed-part design for withdrawable circuit-breakers with rear flat vertical terminals. Business Impact: Simplifies field assembly, minimizes connection errors, and speeds up panel commissioning. Application: Optimizes reliability in panel wiring and service-ready installations. Feature: Compliance cluster including IEC 60947-2, UL 489, RoHS, REACH, and CE declarations. Business Impact: Supports cross-border audits and regulatory adherence across plants. Application: Suitable for global deployments in automotive, process, and power distribution environments. Feature: Environmental and materials certifications (EPD, CMRT, TSCA) and WEEE considerations. Business Impact: Facilitates ESG reporting and sustainable procurement practices. Application: Aligns with corporate sustainability programs while maintaining performance. Feature: Packaging and logistics data (21.7 kg unit, 1 piece per box, 360x340x380 mm). Business Impact: Improves inventory planning and shipping accuracy, reducing inbound handling time. Application: Helpful for OEMs and distributors managing large-scale installations. Feature: Compatibility with loose or configurable configurations and XT5 product class. Business Impact: Delivers installation flexibility and faster changes in protection schemes. Application: Ideal for service engineers upgrading Tmax XT systems in evolving facilities.
Get a Quick Quote for a ABB 1SDA104695R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA104695R1?
Enquire Now
FAQs
Yes. This fixed-part accessory is designed for Tmax XT5 withdrawable circuit-breakers, featuring a four-pole XT5 configuration and rear flat vertical terminals suitable for fixed-part installation. It aligns with XT5, 4P assemblies and supports 50/60 Hz operation up to 600 V. Use the appropriate order code KXT5DWFPVR6-4 for US/Canada and ensure panel space accommodates the 360x340x380 mm packaging.
Key ratings include a 4-pole XT5 configuration with Rated Frequency of 50/60 Hz, Rated Operational Voltage up to 600 V AC/DC, and Rated Uninterrupted Current (Iu) of 630 A (and 600 A secondary). It complies with IEC60947-2 and UL489, ensuring robust protection coordination for Tmax XT schemes across global plants.
This fixed-part accessory is compatible with the SACE Tmax XT family and the XT5 variant of Tmax XT. It is specifically designed to accompany XT5 withdrawable circuit-breakers, providing a standardized fixed-part assembly for reliable, modular protection in industrial switchgear.
The accessory carries IEC60947-2 and UL489 standards, with CE declarations of conformity. Additional compliance includes RoHS and REACH declarations, CMRT for conflict minerals, TSCA, and WEEE packaging considerations, ensuring it meets global regulatory and sustainability requirements for modern manufacturing environments.
By standardizing fixed-part installation for Tmax XT XT5, the accessory reduces commissioning time, minimizes wiring errors, and simplifies spare-parts inventory. The integrated certifications and ESG declarations support audits and long-term compliance, delivering lower downtime, easier maintenance planning, and improved lifecycle cost of ownership for power-distribution systems.
