ABB 1SDA105002R1 Accessory - 4P XT5 Barriers IEC60947-2
Part Number: 1SDA105002R1
Quick Summary

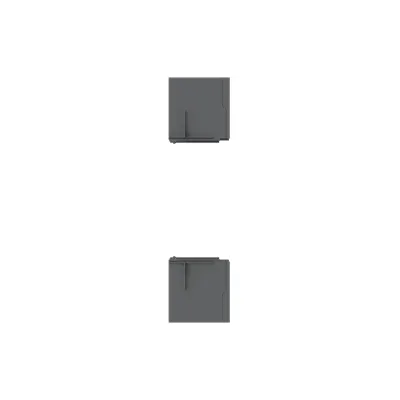

ABB 1SDA105002R1 is an accessory delivering phase barriers for Tmax XT 4P XT5 assemblies. Engineers rely on XT5 phase barriers to ensure clear phase separation, reduce arc-path risk, and fit compact panel layouts. This product aligns with IEC 60947-2, carries a CE declaration, and meets RoHS and REACH requirements, along with CMRT and TSCA declarations. With XT5 compatibility and straightforward mounting, it supports standardized panel design, minimizes installation time, and helps ensure regulatory compliance across global projects.
Product Information
Extended Description
1SDA105002R1 ABB: PB 100mm 4pcs XT5 3p KIT PA.DI.PH.HI
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5PB100-3
E-Number (Norway)
4381476
EAN
8015644070946
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.105 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Height
20 mm
Package Level 1 Depth / Length
250 mm
Package Level 1 Gross Weight
0.111 kg
Package Level 1 EAN
8015644070946
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tamx XT
Configuration Type
Loose or configurable
Number of Poles
4P
Order Multiple
1 piece
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
PB - Phase barriers 100-200mm XT5-XT6
ETIM 8
EC002273 - Phase barrier plate
ETIM 9
EC002273 - Phase barrier plate
IDEA Granular Category Code (IGCC)
4873 >> Phase separation plate for power circuit breaker
UNSPSC
39121601
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27400614
Four-pole XT5 compatibility translates into predictable barrier placement across Tmax XT panels, reducing commissioning time and the risk of mis-polarization. In practice, engineers see faster wiring verification and fewer rework iterations during panel assembly. The product complies with RoHS and REACH, and carries CMRT and TSCA declarations, which supports procurement with confidence and lowers regulatory risk for multinational projects. Configuration flexibility, described as loose or configurable installation, simplifies field mounting in spaces with limited access and accommodates on-site adjustments without disassembly. Packaging and logistics are streamlined with a single-piece unit in a compact box, enabling just-in-time stocking and reducing warehouse complexity. IEC 60947-2 standard compliance ensures compatibility with low-voltage molded case circuit-breakers, while the light 0.105 kg net weight facilitates quick handling on installation days. From an industry perspective, this XT5 accessory aligns with best practices for phase separation plates in SACE Tmax XT control panels, supporting safer, more reliable automation installations.
