ABB 1SDA105005R1 Accessory - IEC60947-2, Tmax XT
Part Number: 1SDA105005R1
Quick Summary
ABB 1SDA105005R1 is an accessory designed for Tmax XT phase barrier assemblies, enabling precise alignment and safe front-end maintenance in compact switchgear. Engineers face challenges aligning barriers across multi-pack configurations and ensuring quick, reliable replacement during upgrades. This 4-pole XT5-compatible kit supports loose or configurable installation, improving field adaptability. With RoHS compliance, REACH declarations, and IEC60947-2 standards alignment, it helps meet stringent regulatory requirements while reducing MRO risk. By integrating seamlessly with SACE Tmax XT breakers, the accessory minimizes commissioning time and stock-keeping complexity. For procurement teams, the ABB solution delivers predictable lead times and improved lifecycle cost through standardized components and traceable compliance data.
Product Information
Extended Description

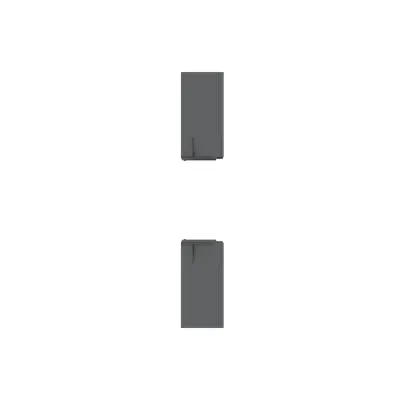

1SDA105005R1 ABB: PB 200mm 6pcs XT5 4p KIT PA.DI.PH.HI
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT5PB200-4
E-Number (Norway)
4381479
EAN
8015644070977
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.167 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Height
20 mm
Package Level 1 Depth / Length
250 mm
Package Level 1 Gross Weight
0.176 kg
Package Level 1 EAN
8015644070977
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT5
Suitable for Product Class
SACE Tamx XT
Configuration Type
Loose or configurable
Number of Poles
4P
Order Multiple
1 piece
Standards
IEC60947-2
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
PB - Phase barriers 100-200mm XT5-XT6
ETIM 8
EC002273 - Phase barrier plate
ETIM 9
EC002273 - Phase barrier plate
IDEA Granular Category Code (IGCC)
4873 >> Phase separation plate for power circuit breaker
UNSPSC
39121601
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27400614
Feature: XT5 phase barrier compatibility and 4-pole configuration. Business Impact: Ensures seamless integration with Tmax XT and reduces barrier-mismatch risk in multi-bay panels. Application: Use in 4P XT5 configurations to accelerate panel assembly and maintenance. Feature: Loose or configurable installation. Business Impact: Provides installation flexibility for retrofits and modular builds, cutting engineering hours and risk of misalignment. Application: Suitable for retrofit projects and new panel builds in automation rooms. Feature: Regulatory and environmental compliance. Business Impact: Simplifies supplier audits and regulatory reporting with RoHS, REACH, CMRT, and TSCA declarations. Application: Preferred in industries with strict sustainability and compliance requirements. Feature: Packaging and identification data. Business Impact: Streamlines procurement, BOM management, and logistics with clear EAN, order code, and packaging details. Application: Efficient stocking and accurate part labeling in OEM and distributor warehouses. Feature: Standards and interoperability. Business Impact: Assures compatibility with IEC60947-2 framed breakers and CE declarations, reducing rework. Application: Widely used in SACE Tmax XT control panels across automotive, process, and power distribution sectors.
