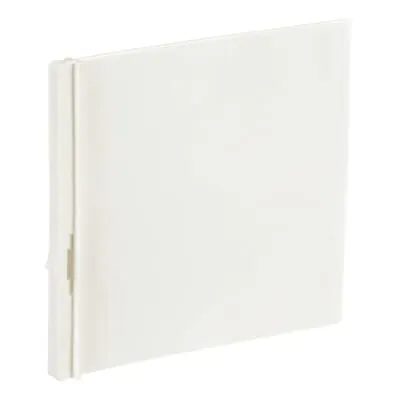

ABB 1SDA107807R1 Accessory for Tmax XT - UL489 & CE
Part Number: 1SDA107807R1
Quick Summary
ABB 1SDA107807R1 is an accessory for Tmax XT three-pole breakers that provides a phase barrier plate to ensure reliable phase separation in compact switchgear and distribution panels. Engineers often wrestle with inconsistent barrier spacing, panel fitment, and complex compliance documentation during XT installations. UL489, CE, and RoHS conformity are critical for safe, market-ready assemblies in global projects. By standardizing on a single, UL489-listed phase barrier solution, maintenance teams reduce assembly time, minimize field rework, and improve safety margins while preserving OEM and customer compliance. With 100 mm barrier spacing and 3-pole XT6 compatibility, it integrates smoothly with existing Tmax XT line and critical peripherals, delivering tangible reduction in total install time and lifecycle costs.
Product Information
Extended Description
1SDA107807R1 ABB: PB 100mm 4pcs XT6 3p UL
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXT6PB100UL-3
EAN
8015644104856
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.105 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Height
20 mm
Package Level 1 Depth / Length
250 mm
Package Level 1 Gross Weight
0.111 kg
Package Level 1 EAN
8015644104856
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT6
Suitable for Product Class
SACE Tamx XT
Configuration Type
Loose or configurable
Number of Poles
3P
Order Multiple
1 piece
Standards
UL489
Data Sheet, Technical Information
SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards Catalog | SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
PB - Phase barriers 100-200mm XT5-XT6
ETIM 8
EC002273 - Phase barrier plate
ETIM 9
EC002273 - Phase barrier plate
IDEA Granular Category Code (IGCC)
4873 >> Phase separation plate for power circuit breaker
UNSPSC
39121601
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27400614
Feature → Business Impact → Application: Loose or configurable installation provides mounting flexibility, reducing procurement delays and rework while enabling rapid field adaptations in mixed-panel environments. This translates to faster commissioning of SACE Tmax XT systems and lower capital expenditure per panel. Application: XT6 3P configurations in distribution boards and motor control centers. Feature → Phase barrier plate with 100 mm spacing improves phase separation, enhancing safety margins and reducing cross-talk in dense panel racks. Application: Compact Tmax XT installations in automation cabinets. Feature → Certifications including UL489, CE, and RoHS ensure regulatory compliance, enabling easier cross-border deployment and warranty protection. Application: Global installations across industries with strict electrical and environmental standards. Feature → 1 piece MOQ and clear packaging data streamline logistics, inventory planning, and supplier reliability. Application: OEM procurement and maintenance spares. Feature → Data-rich packaging and dimensions enable accurate logistics planning and minimizes return-to-stock risk. Application: Warehouse and distribution center operations handling Tmax XT accessory components.
