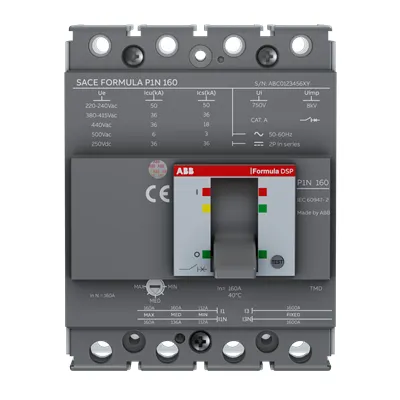

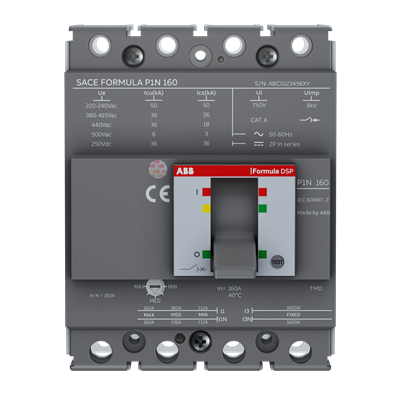

ABB 1SDA116243R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA116243R1
Quick Summary
ABB 1SDA116243R1 moulded case circuit breaker protects electrical distribution in industrial control panels. Engineers frequently struggle to balance robust fault protection with compact panel real estate and easy maintenance in crowded switchgear. This device adheres to IEC standards and carries RoHS, REACH declarations, plus TSCA and CMRT documentation for supply-chain transparency. With a four-pole P1 configuration, front-terminal mounting, and a TMD thermomagnetic release, it delivers reliable protection and predictable tripping. Designed for P1 distribution, it enables scalable panel layouts, faster servicing, and reduced downtime, all while supporting common 50 Hz and 60 Hz industrial applications and ensuring regulatory compliance throughout the lifecycle.
Product Information
Extended Description
1SDA116243R1 ABB: C.BREAKER FORMULA DSP P1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 50-500 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221083515
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
101.6 mm
Product Net Height
130 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.3 kg
Package Level 1 Units
1 piece
Package Level 1 Width
128 mm
Package Level 1 Height
135 mm
Package Level 1 Depth / Length
143 mm
Package Level 1 Gross Weight
1.4 kg
Package Level 1 EAN
8056221083515
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE FORMULA DSP
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
P1
Version
F
Current Type
AC/DC
Mechanical Durability
20000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
3.70 W
Rated Current (In)
50 A
Rated Frequency (f)
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
500 A
Rated Insulation Voltage (Ui)
750 V
Rated Operational Voltage
500 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 40 kA | (380 V AC) 25 kA | (415 V AC) 25 kA | (440 V AC) 12.5 kA | (500 V AC) 3 kA | (250 V DC) 2 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 40 kA | (380 V AC) 25 kA | (415 V AC) 25 kA | (440 V AC) 25 kA | (500 V AC) 4 kA | (250 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
500 V AC | 250 V DC
Release
TMD
Release Type
TM
Setting Range
35…50 A
Short-Circuit Performance Level
C
Standards
IEC
Sub-type
P1
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Instructions and Manuals
Installation instructions P1
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole P1 configuration with front terminals reduces wiring complexity and allows safe, front-access installation. Business Impact: Faster assembly, safer maintenance, and improved cabinet density. Application: Ideal for distribution boards and control panels in manufacturing lines. Feature: Setting range 35–50 A with a fixed 50 A rated current provides precise protection. Business Impact: Minimizes nuisance trips while safeguarding equipment and operators. Application: Power distribution in machine rooms and MCCs where adjustable protection is critical. Feature: Thermomagnetic release (TMD) with 8 kV rated impulse withstand and specified Ics/Iin ratings. Business Impact: Rapid fault clearing under short-circuit conditions, preserving downstream systems. Application: High-demand industrial circuits with transient faults. Feature: Front-terminal connection, 4P design, and compact footprint. Business Impact: Simplified wiring, faster panel wiring and enhanced safety during maintenance. Application: Space-constrained electrical cabinets and modular switchgear setups. Feature: High short-circuit capabilities and energy efficiency (Ics up to 40 kA at 240 V AC; power loss 3.70 W). Business Impact: Robust protection without excessive heat or energy waste. Application: Heavy-load distribution in process lines and robotics cells. Feature: Compliance and documentation (RoHS, REACH, CMRT, TSCA) plus IEC standards. Business Impact: Lower compliance risk and smoother sourcing, audits, and supplier validation. Application: Regulated environments and multinational deployments requiring traceable material declarations.
Get a Quick Quote for a ABB 1SDA116243R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA116243R1?
Enquire Now
FAQs
Yes. The 1SDA116243R1 uses a front-terminal connection and a 4P configuration designed for P1 distribution panels. It fits standard MCCB mounting footprints and supports front-access wiring, which simplifies retrofit projects and minimizes panel rework during upgrades.
Key specs include 50 A rated current, 500 V AC / 250 V DC rated voltage, 4 poles, setting range 35–50 A, and a TMD release. It also delivers 8 kV impulse withstand and short-circuit capacities suitable for protection in typical 240–500 V AC networks, with 40 kA at 240 V AC service ratings.
Ideal for industrial control panels, motor control centers, and power distribution cabinets in manufacturing, process automation, and packaging lines. Its front-terminal design and precise 50 A protection are well-suited for medium-power drives, distribution feeders, and machines requiring reliable, maintainable overcurrent protection.
The product complies with IEC standards and carries RoHS and REACH declarations, plus CMRT and TSCA documentation. This supports regulatory compliance, safer material sourcing, and traceability across global supply chains.
With a mechanical durability rating of 20,000 cycles and front-access design, maintenance windows are reduced and testing is simpler. The device offers predictable protection with low power loss (3.70 W), contributing to lower energy costs and improved equipment uptime, translating to lower total cost of ownership over the system lifecycle.
