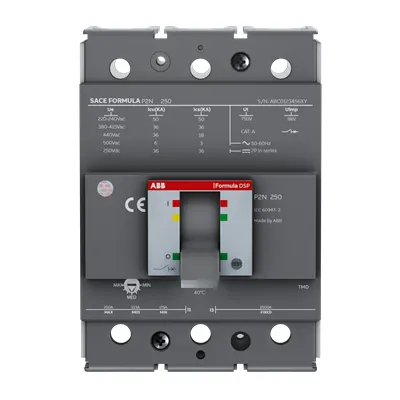

ABB 1SDA116337R1 Moulded Case Circuit Breaker - P2N 3P
Part Number: 1SDA116337R1
Quick Summary
ABB 1SDA116337R1 is a moulded case circuit breaker designed for reliable power distribution protection in industrial panels. It guards P2N circuits against overloads and short circuits with adjustable settings and high short-circuit ratings. Users commonly face nuisance trips or underprotection when selecting the wrong device for 3P systems; this model offers precise 140–200 A setting and a robust 2000 A instantaneous trip for fast isolation. It carries IEC standards and declarations for REACH, RoHS, TSCA, and CMRT, plus WEEE packaging information, ensuring compliance across global supply chains. In terms of business value, it delivers predictable protection with front-terminal installation, compact footprint, and low power loss, helping reduce downtime and maintenance costs while supporting scalable power distribution architectures.
Product Information
Extended Description
1SDA116337R1 ABB: P2N 250 TMD 200-2000 3p F F
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221084451
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
105 mm
Product Net Height
150 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.6 kg
Package Level 1 Units
1 piece
Package Level 1 Width
155 mm
Package Level 1 Height
190 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
8056221084451
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE FORMULA DSP
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
P2
Version
F
Current Type
AC/DC
Mechanical Durability
20000 cycle | 240 cycles per hour
Number of Poles
3P
Power Loss
13.20 W
Rated Current (In)
200 A
Rated Frequency (f)
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
2000 A
Rated Insulation Voltage (Ui)
750 V
Rated Operational Voltage
500 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 50 kA | (380 V AC) 36 kA | (415 V AC) 36 kA | (440 V AC) 18 kA | (500 V AC) 3 kA | (250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 50 kA | (380 V AC) 36 kA | (415 V AC) 36 kA | (440 V AC) 36 kA | (500 V AC) 5 kA | (250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)
250 A
Rated Voltage (Ur)
500 V AC | 250 V DC
Release
TMD
Release Type
TM
Setting Range
140…200 A
Short-Circuit Performance Level
N
Standards
IEC
Sub-type
P2
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Instructions and Manuals
Installation instructions P2
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Setting range 140–200 A enables tailor-made protection for P2N circuits, improving selective coordination with upstream devices. This reduces unnecessary outages and extends equipment life in motor starting and distribution networks. In practice, field technicians can tune without replacing the unit, saving commissioning time and labor costs. The device offers an instantaneous trip setting of 2000 A, ensuring rapid isolation of severe faults at 50/60 Hz and protecting cables, busbars, and downstream equipment from damage. Rated I_n of 200 A and Ui of 500 V AC / 250 V DC support reliable operation across typical European and American installations. Front-terminal connection simplifies wiring during panel assembly, reduces space needs, and speeds on-site installation.
