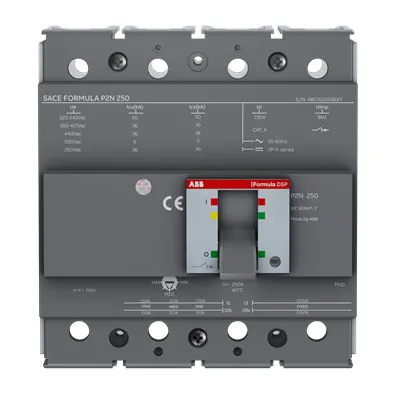

ABB 1SDA116339R1 Moulded Case Circuit Breaker - 4P 125A
Part Number: 1SDA116339R1
Quick Summary
ABB 1SDA116339R1 Moulded Case Circuit Breaker provides reliable overcurrent protection for industrial power distributions and motor drives. In demanding environments, nuisance trips or unclear fault diagnosis can lead to unscheduled downtime and mounting maintenance costs. The unit aligns with IEC standards and carries RoHS, REACH, and CMRT declarations, supporting regulatory compliance and responsible sourcing. With four poles and a 125 A rated current, it offers selective protection in compact panels while maintaining easy front-terminal installation. By choosing ABB SACE FORMULA DSP, you gain predictable performance, streamlined commissioning, and traceable environmental data that support procurement, quality processes, and long-term uptime.
Product Information
Extended Description
1SDA116339R1 ABB: P2N 250 TMD 125-1250 4p F F InN=50%
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221084475
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
150 mm
Product Net Depth / Length
70 mm
Product Net Weight
2 kg
Package Level 1 Units
1 piece
Package Level 1 Width
155 mm
Package Level 1 Height
190 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Gross Weight
2.1 kg
Package Level 1 EAN
8056221084475
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE FORMULA DSP
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
P2
Version
F
Current Type
AC/DC
Mechanical Durability
20000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
6.60 W
Rated Current (In)
125 A
Rated Frequency (f)
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
1250 A
Rated Insulation Voltage (Ui)
750 V
Rated Operational Voltage
500 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 50 kA | (380 V AC) 36 kA | (415 V AC) 36 kA | (440 V AC) 18 kA | (500 V AC) 3 kA | (250 V DC) 2 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 50 kA | (380 V AC) 36 kA | (415 V AC) 36 kA | (440 V AC) 36 kA | (500 V AC) 5 kA | (250 V DC) 2 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)
250 A
Rated Voltage (Ur)
500 V AC | 250 V DC
Release
TMD
Release Type
TM
Setting Range
87.5…125 A
Short-Circuit Performance Level
N
Standards
IEC
Sub-type
P2
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Instructions and Manuals
Installation instructions P2
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Four-pole configuration delivers balanced, multi-phase protection for motor and distribution circuits, reducing the risk of collateral faults and downtime. This translates to improved system reliability in automation panels and plant-wide power distribution. Feature → Application: Setting Range of 87.5–125 A paired with I_i = 1250 A provides precise coordination for selective tripping in P2 networks, enabling selective protection in complex industrial layouts and easier fault isolation for maintenance teams. Feature → Application: Ui of 750 V (Rated Insulation Voltage) and U_r of 500 V AC / 250 V DC support safe operation across mixed supply environments, minimizing insulation stress and extending component life. Feature → Application: Front-terminal connection and 4P geometry simplify installation and future modernization in control cabinets, reducing commissioning time and simplifying field upgrades. Feature → Application: RoHS/REACH declarations, CMRT, TSCA, and WEEE data ensure regulatory compliance and traceability, helping procurement meet sustainability goals while maintaining vendor accountability. Feature → Application: Power loss of 6.60 W and mechanical durability of 20,000 cycles deliver energy efficiency and long-term reliability, lowering lifecycle costs and improving total cost of ownership in automation projects. Feature → Application: Ics and Icu ratings across multiple voltages (up to 50 kA at 240 V AC for service short-circuit) support robust protection in high-demand industrial environments, from packaging lines to heavy machinery, while the TMD release enhances coordination with upstream protection systems. This combination of specifications supports robust performance in SACE FORMULA DSP-based protection schemes and P2 distribution applications, enabling engineers to design safer, compliant, and cost-efficient electrical architectures.
Get a Quick Quote for a ABB 1SDA116339R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA116339R1?
Enquire Now
FAQs
Yes. The device uses a front-terminal connection and is designed as a 4-pole MCCB, compatible with typical distribution panels and control cabinets. It supports 500 V AC / 250 V DC applications and is suitable for P2 distribution schemes, simplifying installation and future upgrades.
The breaker features a setting range of 87.5–125 A with an instantaneous setting I_i of 1250 A. It provides service short-circuit capacity (I_cs) up to 50 kA at 240 V AC and up to 36 kA at higher voltages, plus an ultimate short-circuit capacity (I_cu) up to 36 kA depending on the voltage, ensuring strong protective performance in demanding systems.
This MCCB is ideal for P2 distribution, motor protection, and general power distribution panels within automation environments. Its 4P configuration, front-termination, and TMD release support selective coordination and rapid fault isolation, reducing downtime and improving maintenance efficiency.
The product carries REACH and RoHS declarations, CMRT for conflict minerals, TSCA, and WEEE information, along with IEC standards. These declarations help ensure regulatory compliance, responsible sourcing, and easier audit readiness for regulated industries.
With 20,000 mechanical cycles and a low power loss of 6.60 W, the device offers long service life and energy efficiency. Front-terminal installation reduces field maintenance time, while clear coordination data supports faster fault analysis and reduced downtime, delivering tangible total cost of ownership improvements.
