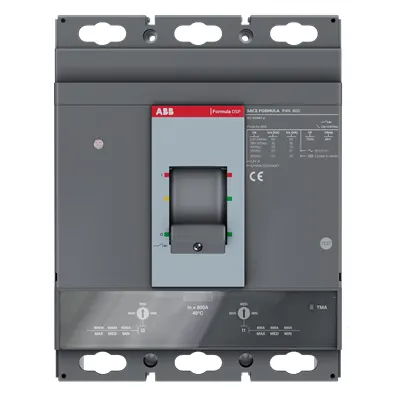

ABB 1SDA116404R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA116404R1
Quick Summary
ABB 1SDA116404R1 is a moulded case circuit breaker (MCCB) engineered for robust power distribution in industrial automation. It delivers 800 A nominal current with a 560–800 A setting range and a front-terminal connection for straightforward, site-ready wiring. Rated for 500 V AC and 250 V DC, it includes an 8 kV impulse withstand to protect downstream equipment in demanding environments. This MCCB carries IEC standards compliance along with RoHS, REACH declarations, TSCA and CMRT reporting, reducing regulatory risk for global deployments. For panel builders and system integrators, it offers seamless integration with ABB SACE FORMULA DSP devices and P4 configurations, enabling scalable protection while minimizing downtime and maintenance costs.
Product Information
Extended Description
1SDA116404R1 ABB: P4H 800 TMA 800-8000 3p F F
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221085120
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
9.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
305 mm
Package Level 1 Height
285 mm
Package Level 1 Depth / Length
370 mm
Package Level 1 Gross Weight
9.6 kg
Package Level 1 EAN
8056221085120
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE FORMULA DSP
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
P4
Version
F
Current Type
AC/DC
Mechanical Durability
15000 cycle | 240 cycles per hour
Number of Poles
3P
Power Loss
54.20 W
Rated Current (In)
800 A
Rated Frequency (f)
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
4000…8000 A
Rated Insulation Voltage (Ui)
750 V
Rated Operational Voltage
500 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 50 kA | (500 V AC) 18 kA | (250 V DC) 2 Poles in Series 35 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 50 kA | (500 V AC) 25 kA | (250 V DC) 2 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
800 A
Rated Voltage (Ur)
500 V AC | 250 V DC
Release
TMA
Release Type
TM
Setting Range
560…800 A
Short-Circuit Performance Level
H
Standards
IEC
Sub-type
P4
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Instructions and Manuals
1SDH002127A1001
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 3P, 800 A rating with a 560–800 A setting range provides precise overcurrent protection tailored to motor feeders and distribution panels, reducing nuisance trips and protecting critical loads in manufacturing lines. This translates to improved line uptime and lower maintenance costs. Application: Ideal for P4 power distribution in industrial environments where reliable protection and adjustability are essential. Feature → Business Impact → Application: A front-terminal connection simplifies wiring and enables faster installation, shortening commissioning time and reducing field labor costs. Application: Suitable for compact switchgear and control panels where space is at a premium and quick replacements are beneficial. Feature → Business Impact → Application: IEC standard compliance, RoHS/REACH declarations, and CMRT/TSCA reporting minimize regulatory risk across global operations and facilitate supply chain approvals. Application: Global factories and multinational projects needing consistent compliance documentation. Feature → Business Impact → Application: Mechanical durability rated at 15,000 cycles supports long service life under frequent switching conditions, lowering total cost of ownership in continuous operation environments. Application: Heavy-duty machinery, conveyors, and automated lines requiring durable protection. Feature → Business Impact → Application: High Ics/Icu capability across voltages (up to 100 kA at 240 V AC, 70 kA at higher voltages; up to 25 kA at 500 V AC and 70 kA DC) ensures safe interruption during faults without compromising system availability. Application: Large or critical power feeders in data centers, machine rooms, and processing plants. Feature → Business Impact → Application: Compatibility with SACE FORMULA DSP family enables scalable protection architecture and consistent maintenance procedures. Application: Modular protection strategy for growing facilities and retrofits.
Get a Quick Quote for a ABB 1SDA116404R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA116404R1?
Enquire Now
FAQs
Yes. The 1SDA116404R1 uses a front-terminal connection and a 3P frame designed for common MCCB footprints in industrial panels. With dimensions of approximately 210 mm width and 268 mm height, it fits standard distribution enclosures and is straightforward to wire during panel assembly, reducing field modification time and risk.
The device is rated for 800 A (In) with a setting range of 560–800 A. It operates up to 500 V AC / 250 V DC, with an 8 kV impulse withstand (Uimp). Ics reaches up to 100 kA at 240 V AC and up to 70 kA at higher voltages, while Icu ranges from 25–70 kA depending on voltage, ensuring robust fault interruption across typical industrial deployments.
Absolutely. The 3P 800 A configuration, setting range, and high short-circuit capabilities make it ideal for P4 power distribution and motor feeder protection. Its front-terminal design and IEC compliance support reliable installation in control panels and switchgear used in automation and manufacturing environments.
This MCCB comes with a REACH Declaration, RoHS Information and Status, CMRT (Conflict Minerals Reporting Template), TSCA declaration, environmental packaging information, and IEC standard compliance. These declarations help streamline regulatory approvals and sustainability reporting for global operations.
The 15,000 mechanical cycles durability reduces the frequency of contact wear-related trips, lowering maintenance visits. Front-terminal installation speeds commissioning, while IEC/RoHS/REACH compliance lowers regulatory risk. Over time, dependable protection translates to reduced downtime and lower lifecycle costs for critical power systems.
