ABB 1SDA116406R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA116406R1
Quick Summary
ABB 1SDA116406R1 is a moulded case circuit breaker designed for robust power distribution in industrial environments. It addresses the common challenge of protecting feeders while preserving uptime, thanks to a four-pole design and front-terminal installation that simplify wiring and panel layout. This device aligns with IEC standards and carries RoHS and REACH declarations, complemented by CMRT and TSCA disclosures to support responsible sourcing. As part of the SACE FORMULA DSP family, it enables straightforward upgrades and predictable maintenance, delivering safer electrical distribution with lower total cost of ownership and improved plant reliability. For procurement teams, it pairs regulatory compliance with practical performance in heavy-duty applications.
Product Information
Extended Description

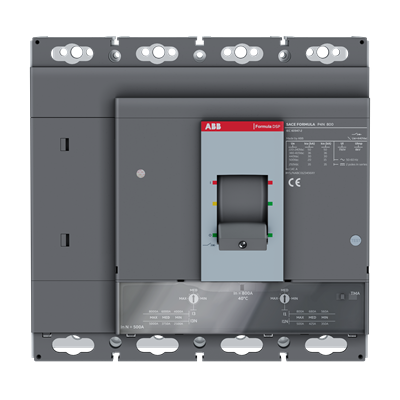

1SDA116406R1 ABB: C.BREAKER FORMULA DSP P4H 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 800 I3=4000...8000 A FULLY RATED NEUTRAL
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221085144
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
12 kg
Package Level 1 Units
1 piece
Package Level 1 Width
305 mm
Package Level 1 Height
285 mm
Package Level 1 Depth / Length
370 mm
Package Level 1 Gross Weight
14 kg
Package Level 1 EAN
8056221085144
Circuit Breaker Type to be Associated
Power Distribution
Product Main Type
SACE FORMULA DSP
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
P4
Version
F
Current Type
AC/DC
Mechanical Durability
15000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
54.20 W
Rated Current (In)
800 A
Rated Frequency (f)
50/60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)
4000…8000 A
Rated Insulation Voltage (Ui)
750 V
Rated Operational Voltage
500 V AC | 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 50 kA | (500 V AC) 18 kA | (250 V DC) 2 Poles in Series 35 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 50 kA | (500 V AC) 25 kA | (250 V DC) 2 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
800 A
Rated Voltage (Ur)
500 V AC | 250 V DC
Release
TMA
Release Type
TM
Setting Range
560…800 A
Short-Circuit Performance Level
H
Standards
IEC
Sub-type
P4
Terminal Connection Type
Front
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Instructions and Manuals
1SDH002127A1001
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: four-pole construction with front-terminal connections. Business impact: simplifies wiring, reduces panel depth, and speeds commissioning for multi-branch feeders. Application: ideal for control cabinets, motor starters, and compact switchgear in manufacturing lines. Feature: adjustable setting range 560–800 A. Business impact: enables precise protection coordination with minimal nuisance trips, lowering downtime. Application: distribution feeders and P4-class circuits requiring scalable protection in evolving plants. Feature: high fault-current ratings (Ics up to 100 kA, Icu up to 70 kA). Business impact: robust short-circuit resilience, protecting equipment and extending service life. Application: critical power distribution and motor loads in 400–600 V systems. Feature: TMA release with front terminals and 4P configuration. Business impact: reliable electromagnetic and thermal protection with easy operation, even under frequent cycling. Application: industrial drives and machine tools requiring fast, selective tripping. Feature: RoHS/REACH, CMRT, TSCA compliance. Business impact: reduces regulatory risk and streamlines procurement with auditable sustainability data. Application: compliant supply for global projects and electronics-heavy installations. Feature: power loss around 54.2 W; rated voltage 500 VAC / 250 VDC; front-terminate design. Business impact: predictable energy efficiency and straightforward retrofits, with lower total cost of ownership. Application: feeder protection in automated lines and distribution panels.
Get a Quick Quote for a ABB 1SDA116406R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA116406R1?
Enquire Now
FAQs
Front-terminal MCCBs require panel cutouts sized for the device, appropriate torque on terminal screws, and correctly sized conductors. Use ferrules or lugs rated for 800 A and ensure proper clearance for heat dissipation within the enclosure. This reduces wiring errors and speeds commissioning in control panels.
The adjustable range allows precise trip thresholds to match upstream protection while avoiding nuisance trips. For P4 feeder circuits, set just below the primary protection device to ensure selective tripping during faults, minimizing downtime and protecting critical loads.
Yes. The device supports rated voltage of 500 V AC and 250 V DC, with Ui rated at 750 V and front-terminal configuration. It is compatible with P4 distribution panels in mixed AC/DC environments, provided proper wiring and protection coordination are observed.
It carries IEC standards compliance along with RoHS and REACH declarations, CMRT and TSCA reporting, and WEEE packaging notices. These certifications help with regulatory approvals, sustainability reporting, and global procurement.
The 1SDA116406R1 features up to 15,000 mechanical cycles, a power loss of 54.2 W, and a robust TMA release. These factors contribute to longer service life, reduced maintenance intervals, and lower downtime costs in automated manufacturing environments.
