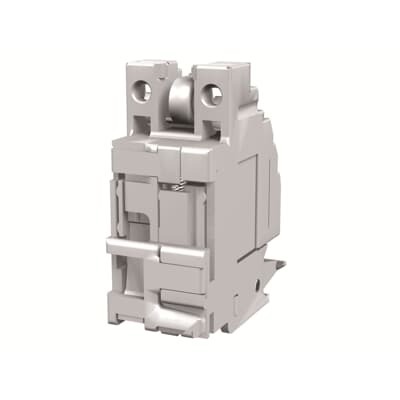

ABB 1SDA116451R1 Accessory for SACE Formula DSP - IEC
Part Number: 1SDA116451R1
Quick Summary
ABB 1SDA116451R1 is an accessory for SACE Formula DSP MCCBs that enables a shunt opening release for 48–60 V AC/DC. This compact module addresses miswiring and space constraints by delivering a configurable release option that simplifies retrofits. It is aligned with IEC standards and carries a CE declaration, RoHS status, and CMRT for full regulatory visibility. For procurement teams, this accessory streamlines stocking, reduces installation risk, and supports P1–P2 configurations, delivering faster, safer MCCB integration in industrial panels.
Product Information
Extended Description
1SDA116451R1 ABB: SHUNT OPENING RELEASE 48-60V AC-DC FORMULA DSP P1-P2
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
EAN
8056221085595
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Main Type
Accessories for SACE FORMULA DSP
Product Name
Accessory
Product Type
ACC
Suitable For
P1 | P2
Suitable for Product Class
SACE FORMULA DSP
Configuration Type
Loose or configurable
Standards
IEC
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] FORMULA DSP MCCB
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
1SDH002119A1501
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Shunt opening release for 48-60V AC-DC; Business Impact: Enables safe, predictable switching of ABB SACE Formula DSP MCCBs and reduces commissioning time in panel builds. Application: Ideal for hard-to-access installations where reliable release control is required. The solution supports P1-P2 configuration, improving control fidelity in low-power release schemes. Feature: Loose or configurable installation; Business Impact: Flexibility to tailor wiring layouts and connector choices, cutting mounting effort and spare parts. Application: Works across multiple enclosure depths and cabinet layouts. Feature: Comprehensive compliance data; Business Impact: Ensures regulatory traceability and fast audits, reducing supplier risk and QA time. Application: Aligns with RoHS, REACH, CMRT, and TSCA requirements for global operations. Feature: Product data availability; Business Impact: Quick referencing of data sheets and manuals shortens training and keeps teams aligned. Application: Data sheet, CE declarations, and ABB documentation support standard operating procedures. Feature: Packaging and logistics support; Business Impact: Simplifies inventory planning with clear MOQ and EAN data. Application: 1 piece minimum order, EAN 8056221085595 for streamlined purchasing and logistics planning.
Get a Quick Quote for a ABB 1SDA116451R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA116451R1?
Enquire Now
FAQs
The ABB 1SDA116451R1 is designed as a loose, configurable shunt release compatible with SACE Formula DSP MCCBs. Connect the release to the P1-P2 control circuit per the catalog data sheet, verify wiring polarity, and secure the module within the MCCB assembly. The data sheet (Catalogue (.PDF) [ZH] FORMULA DSP MCCB) provides step-by-step wiring diagrams and torque specifications to ensure safe, reliable operation.
This accessory supports a 48–60 V AC-DC control range for shunt opening. It is intended for P1-P2 configurations and is designed to function within the IEC standard framework for FORMULA DSP MCCBs. For exact electrical parameters, consult the datasheet and the CE declarations, which accompany the product documentation and provide safe operating limits and installation notes.
Yes, the accessory is suitable for P1-P2 configurations and is described as compatible with SACE Formula DSP devices. This enables flexible release control in compact panels and supports common industrial control architectures where shunt release timing is critical for safe breaker operation.
The product carries REACH and RoHS declarations, a TSCA statement, and a CE declaration. IEC standards underpin its compatibility, and CMRT documentation is provided for supply-chain traceability. These certifications help ensure regulatory compliance across global installations and supplier audits.
With a minimum order quantity of one piece and a single EAN for easy ordering, this accessory reduces upfront inventory risk. The availability of data sheets and manuals facilitates quick onboarding and lowers training costs. Its reliable performance improves downtime metrics and smooths retrofits, delivering a favorable return on investment over multiple panel projects.
