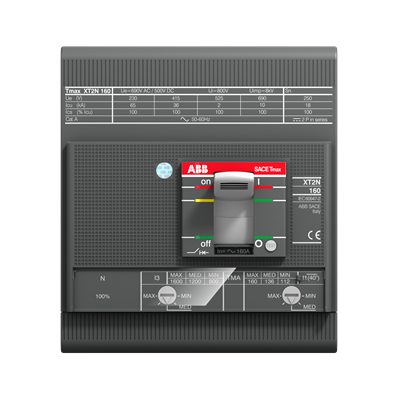

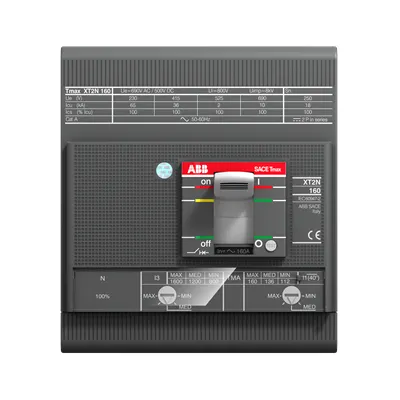

ABB 1SDA123553R1 Moulded Case Circuit Breaker - IEC 60947-2
Part Number: 1SDA123553R1
Quick Summary
Moulded Case Circuit Breaker protects DC power feeds in industrial automation panels. Engineers often face challenges with reliable DC protection and wiring access; this ABB model adds front terminals for fast, safe servicing. It complies with IEC 60947-2, CE declarations, and RoHS, with sustainability data from EPD and EN45555 recyclability to support green manufacturing. For panel builders and OEMs, the device delivers predictable trip performance, reduced maintenance time, and a lower total cost of ownership through robust durability and lifecycle readiness.
Product Information
Extended Description
1SDA123553R1 ABB: C.BREAKER TMAX XT2L 160 DC FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 20
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT2 TM (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.7 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Customs Tariff Number
85362000
Product Net Width
120 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Current Type
DC
Mechanical Durability
25000 cycle | ;240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 1.62 W
Rated Current (In)
20 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(250 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(250 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Uninterrupted Current (Iu)
160 A
Release
TMD
Release Type
TM
Short-Circuit Performance Level
L
Standards
IEC 60947-2 | GB/T 14028.2
Sub-type
XT2
Terminal Connection Type
Fixed Circuit-Breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
Instructions and Manuals
Installation instructions XT2 DC IEC
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Four-pole, fixed-front-terminal design enables quick installation and safer maintenance in dense panel layouts, reducing commissioning time and wiring errors in DC power distribution. This translates to lower field labor costs and improved panel reliability in critical automation systems such as ABB Tmax XT2L installations. Feature → Business Impact → Application: 20 A rated current with DC operation enables compact protection for local DC busses, improving protection selectivity and minimizing nuisance trips in compact control cabinets across manufacturing lines. Feature → Business Impact → Application: 8 kV rated impulse withstand and 85 kA short-circuit capacity (Ics/Icu) provide robust fault protection for high-energy DC circuits in robotics, conveyors, and packaging lines. Feature → Business Impact → Application: Thermomagnetic TMD release offers fast, predictable tripping under DC faults, reducing damage to downstream drives and ensuring safety interlocks in hazardous environments. Feature → Business Impact → Application: Front-terminal connection simplifies field wiring, facilitates retrofits, and supports modular panel configurations with XT2L series devices. Feature → Business Impact → Application: RoHS, REACH declarations and EPD EN45555 recyclability data help meet regulatory demands and sustainability targets for modern plant operations.
Get a Quick Quote for a ABB 1SDA123553R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA123553R1?
Enquire Now
FAQs
This device uses fixed front terminals designed for easy wiring access in compact control cabinets. It fits standard XT2L DC protection schemes and is compatible with 4-pole configurations typical in DC power distribution within industrial automation panels. When wiring, ensure correct polarity awareness and maintain clearances per IEC 60947-2 guidelines to preserve tripping performance and electrical clearance.
The 1SDA123553R1 delivers up to 85 kA short-circuit capacity for both service and ultimate ratings in 2- or 3-pole series under 250 V DC or 500 V DC conditions, with a rated service current of 20 A and uninterrupted current of 160 A. These specs support reliable fault interruption and safe operation in demanding DC distribution applications.
Yes. The unit provides RoHS compliance and REACH declarations for ABB Sace circuit breakers, with an Environmental Product Declaration (EPD) for Tmax XT XT2 TM and recyclability data aligned to EN45555. This supports regulatory compliance, responsible sourcing, and sustainability reporting in procurement processes.
Mechanical durability is rated at up to 25,000 cycles, with a specified cycle rate of about 240 cycles per hour. This makes the breaker well-suited for frequent operation in automated lines and robotics where frequent switching occurs, while maintaining precise protection thresholds and reliable trip performance.
Ideal for DC power distribution in industrial automation, particularly in ABB Tmax XT2L ecosystems. It supports front-terminal wiring, 4P protection, and robust short-circuit performance, making it suitable for panels in manufacturing, material handling, and process automation where reliable DC protection, fast serviceability, and regulatory compliance are essential.
