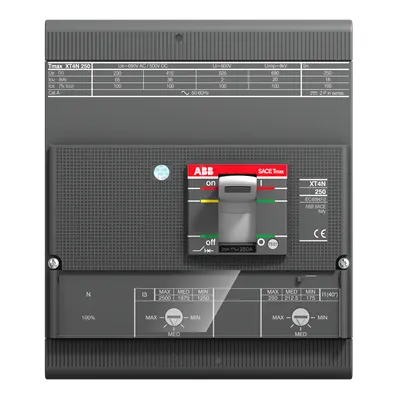

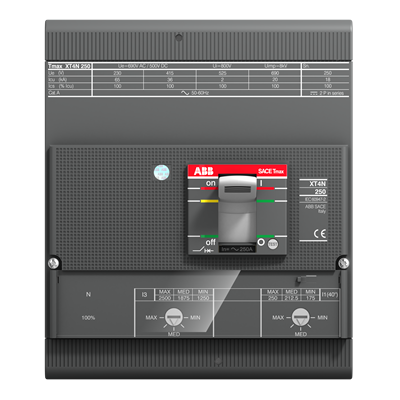

ABB 1SDA123587R1 Moulded Case Breaker - XT4 TM
Part Number: 1SDA123587R1
Quick Summary
ABB 1SDA123587R1 Moulded Case Breaker is a DC high-capacity MCCB designed for reliable protection in 750 V DC power systems. Engineers struggle with space constraints, maintenance complexity, and regulatory compliance in modern control panels. This model supports IEC 60947-2 and GB/T 14028.2, and carries CE conformity as well as RoHS and REACH declarations, while ABB EcoSolutions provides End-Of-Life disassembly guidance and a transparent recycling path. By combining rugged protection with lifecycle transparency, it helps reduce downtime, improve fault response, and simplify procurement through a trusted, standards-aligned component.
Product Information
Extended Description
1SDA123587R1 ABB: XT4N250 DC TMA200 FF 4P
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT4 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT4 TM (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 56.3 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Customs Tariff Number
85362000
Product Net Width
140 mm
Product Net Height
160 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
3.5 kg
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Current Type
DC
Mechanical Durability
25000 cycle | ;240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 11.88 W
Rated Current (In)
200 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(250 V DC) 2 Poles in Series 36 kA | (500 V DC) 2 Poles in Series 36 kA | (500 V DC) 3 Poles in Series 36 kA | (750 V DC) 3 Poles in Series 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(250 V DC) 2 Poles in Series 36 kA | (500 V DC) 2 Poles in Series 36 kA | (500 V DC) 3 Poles in Series 36 kA | (750 V DC) 3 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)
250 A
Release
TMA
Release Type
TM
Short-Circuit Performance Level
N
Standards
IEC 60947-2 | GB/T 14028.2
Sub-type
XT4
Terminal Connection Type
Fixed Circuit-Breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT4
Instructions and Manuals
Installation instructions XT4 DC IEC
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 4-pole fixed circuit-breaker with a 200 A DC rating and 750 V DC operating voltage. Business Impact: Enables safe, scalable DC distribution with compact panel footprint and predictable protection. Application: Ideal for DC drives, industrial automation panels, and power distribution in harsh environments. Feature: IEC 60947-2 and GB/T 14028.2 compliance plus CE, RoHS, and REACH declarations. Business Impact: Ensures regulatory compliance across global markets, reducing audit risk and avoiding non-conformant procurement. Application: Widely applicable in manufacturing plants and data centers requiring certified electrical protection. Feature: ABB EcoSolutions lifecycle data, including End Of Life disassembly instructions and EPD. Business Impact: Supports sustainability goals with recycling guidance and transparent environmental impact data, lowering total cost of ownership over the product lifecycle. Application: Responsible procurement for facilities aiming for waste reduction and resource looping. Feature: 4P XT4 TM release with fixed terminals and compact form factor. Business Impact: Simplifies installation, reduces commissioning time, and improves serviceability in constrained spaces. Application: Panel builders and integrators working in tight enclosures or retrofit projects. Feature: Mechanical durability up to 25,000 cycles and 56.3% recyclability per EN45555. Business Impact: Delivers reliable long-term performance with measurable sustainability benefits, supporting maintenance planning and asset lifecycle strategies. Application: Heavy-usage automation lines and critical DC power architectures where uptime matters.
