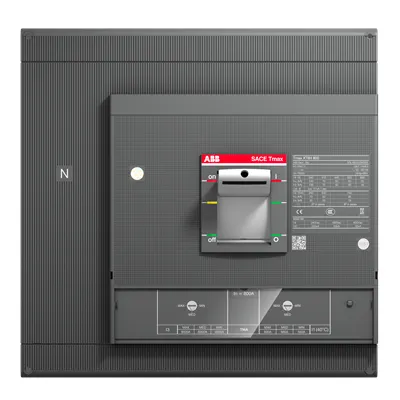

ABB 1SDA123638R1 Moulded Case Breaker - 4P DC 630A 8 kV
Part Number: 1SDA123638R1
Quick Summary
ABB 1SDA123638R1 is a high-capacity moulded case circuit breaker designed for DC power protection in industrial systems. For engineers, the challenge is delivering reliable short-circuit protection without sacrificing space or serviceability. It complies with IEC 60947-2 and GB/T 14028.2, and carries CE conformity along with an Environmental Product Declaration and clear end-of-life disassembly instructions. This combination provides robust DC protection with a coherent environmental and compliance story. With fixed terminals, a 4P configuration, and a 630 A rating, it supports data centers, manufacturing lines, and automated plants, helping reduce downtime and operational costs while ensuring safe, compliant operation.
Product Information
Extended Description
1SDA123638R1 ABB: XT6S 800 DC TMA630 FF 4P
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT6 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT6 TM (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 60 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
85362000
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
12 kg
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Current Type
DC
Mechanical Durability
20000 cycle | ;120 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 34.4 W
Rated Current (In)
630 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(250 V DC) 2 Poles in Series 35 kA | (500 V DC) 2 Poles in Series 25 kA | (750 V DC) 3 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(250 V DC) 2 Poles in Series 70 kA | (500 V DC) 2 Poles in Series 50 kA | (750 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)
800 A
Release
TMA
Release Type
TM
Short-Circuit Performance Level
S
Standards
IEC 60947-2 | GB/T 14028.2
Sub-type
XT6
Terminal Connection Type
Fixed Circuit-Breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT6
Instructions and Manuals
Installation instructions XT6 DC IEC
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → ApplicationThe 4-pole DC design (630 A, 750 V DC) delivers robust protection for high-current DC buses, reducing fault propagation and downtime. This enables reliable motor drives and DC links in automated plants, data centers, and energy storage systems. The result is improved system availability and lower maintenance costs.High short-circuit withstand and breaking capacities (Ics and Icu) across voltage levels ensure fast fault clearance without compromising downstream equipment. This is critical for renewable energy interfaces, grid-triendly DC networks, and industrial drives where resilience matters.Rated operational voltage of 750 V DC with Ui up to 1000 V provides a broad margin for future expansion and higher-energy applications, simplifying panel design and procurement while preserving safety margins for installation engineers.Mechanical durability at 20000 cycles supports frequent switching in automation lines, reducing replacement cycles and maintenance interventions in manufacturing cells and packaging lines.Power loss of 34.4 W per pole at rated conditions supports thermally predictable operation, aiding cooling design and energy efficiency plans in compact control panels and high-density switchgear assemblies.ABB EcoSolutions and environmental declarations (EPD, 60% recyclability per EN45555) allow teams to meet sustainability targets and regulatory requirements, improving total cost of ownership and corporate responsibility metrics.Fixed circuit-breaker terminals simplify installation and service access, enabling quicker panel mounting, cleaner wiring, and reduced commissioning time in control cabinets and MCC rooms.Compliance with IEC 60947-2 and CE declarations provides procurement confidence and smoother integration into industrial control panels, avoiding last-minute design changes during audits.
Get a Quick Quote for a ABB 1SDA123638R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA123638R1?
Enquire Now
FAQs
The 1SDA123638R1 is designed for high-current DC protection in industrial power distribution. It suits DC bus protection for motor drives, data centers, solar/DC storage systems, and other harsh environments where reliable tripping and fast fault clearance are essential.
Key specs include a rated current of 630 A, rated insulation voltage 1000 V, rated operational voltage 750 V DC, and a rated impulse withstand voltage of 8 kV. It is a 4-pole unit with fixed terminals and a service life of up to 20000 cycles.
Yes. The product conforms to IEC 60947-2 and GB/T 14028.2 standards and carries CE declaration of conformity, ensuring it meets international safety and performance benchmarks for industrial control panels.
ABB provides an Environmental Product Declaration (EPD) and information on recyclability (60% per EN45555). There are also disassembly instructions for End Of Life handling, supporting responsible disposal and resource recovery.
This unit uses fixed terminals and has compact net dimensions: 280 mm width, 268 mm height, and 103.5 mm depth, with a weight of 12 kg. It is well-suited for panel mounting in control cabinets and MCC rooms, offering predictable installation and maintenance workflows.
