ABB 1SDA123639R1 Moulded Case Breaker - IEC60947-2
Part Number: 1SDA123639R1
Quick Summary
1SDA123639R1 is a high-current DC moulded case breaker designed for industrial power distribution and battery storage applications. Engineers rely on dependable DC protection that isolates faults quickly to prevent equipment damage and downtime. This ABB device meets IEC 60947-2 and CE conformity while maintaining RoHS and REACH compliance, with an End-of-Life recycling framework. With a rating of 800 A and 750 V DC across a 3P configuration, it supports rugged, scalable protection in harsh environments. The compact yet robust design simplifies panel integration and reduces total cost of ownership by minimizing wiring complexity and maintenance needs. This makes it an ideal choice for data centers, manufacturing lines, and energy storage systems where uptime matters.
Product Information
Extended Description

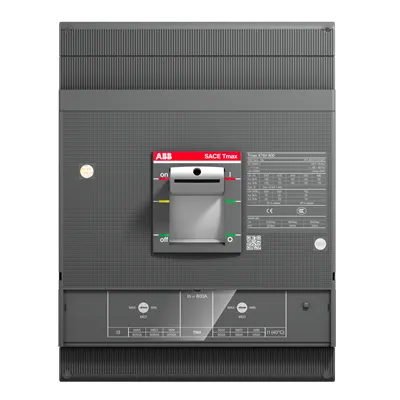

1SDA123639R1 ABB: XT6S 800 DC TMA800 FF 3P
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT6 TM
Environmental Product Declaration - EPD
EPD Tmax XT XT6 TM (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 60 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
85362000
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
9.5 kg
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Current Type
DC
Mechanical Durability
20000 cycle | ;120 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 54.2 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(250 V DC) 2 Poles in Series 35 kA | (500 V DC) 2 Poles in Series 25 kA | (750 V DC) 3 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(250 V DC) 2 Poles in Series 70 kA | (500 V DC) 2 Poles in Series 50 kA | (750 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)
800 A
Release
TMA
Release Type
TM
Short-Circuit Performance Level
S
Standards
IEC 60947-2 | GB/T 14028.2
Sub-type
XT6
Terminal Connection Type
Fixed Circuit-Breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT6
Instructions and Manuals
Installation instructions XT6 DC IEC
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High DC protection rating (800 A, 750 V DC) across a 3-pole configuration. Business Impact: Delivers reliable fault isolation for high-current DC networks, reducing unplanned downtime and improving system availability. Application: Data centers and industrial DC bus protection where fast interruption prevents collateral damage. Feature: High short-circuit withstand capabilities (Ics up to 35 kA at 250 V DC; 18 kA at 750 V DC in 3P series) with 70 kA ultimate break capacity at 250 V DC. Business Impact: Ensures selective coordination and robust fault clearance under diverse DC fault conditions, lowering risk of cascading outages. Application: Battery storage systems and motor drives where fault levels vary. Feature: Extended mechanical durability (20,000 cycles; 120 cycles/hour) and low power loss (54.2 W per pole). Business Impact: Longer service life, reduced maintenance costs, and lower energy consumption during normal operation. Application: Frequent switching environments and long lifetime installations. Feature: Environmental and compliance framing (EPD, RoHS, REACH; 60% recyclability per EN45555). Business Impact: Supports sustainability targets and regulatory compliance while reducing lifecycle waste. Application: Green data centers and eco-conscious industrial plants. Feature: Installation and compatibility (Fixed circuit-breakers; dimensions 210 mm x 268 mm x 103.5 mm; weight 9.5 kg). Business Impact: Simplifies panel integration and minimizes mounting effort, accelerating commissioning. Application: Custom electrical panels and retrofit projects where fixed mounting is preferred. Feature: Standards and release details (IEC 60947-2; Release TMA/TM). Business Impact: Ensures global compliance and predictable behavior across installations. Application: International projects requiring certified DC protection.
Get a Quick Quote for a ABB 1SDA123639R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA123639R1?
Enquire Now
FAQs
This 3-pole DC moulded case breaker uses fixed circuit-breaker terminals and fits standard panel cutouts designed for high-current DC protection. With dimensions of 210 mm width, 268 mm height, and 103.5 mm depth, plus a weight of 9.5 kg, it is suitable for robust panel installations. Follow ABB installation instructions XT6 DC IEC for mounting torque and clearances to ensure safe operation.
Key specs include a rated current of 800 A, rated operational voltage of 750 V DC, and rated insulation voltage of 1000 V. It offers a rated impulse withstand voltage of 8 kV. Short-circuit protection ranges up to 35 kA (250 V DC) for 2 poles, 18 kA (750 V DC) for 3 poles, and an ultimate short-circuit capacity of up to 70 kA (250 V DC). It also provides 54.2 W power loss per pole and 20,000 mechanical cycles.
Yes. The device is designed for high-current DC protection across data centers and energy storage systems, offering 3P protection, robust Ics/Icu ratings, and reliable fault isolation at 750 V DC. Its RoHS/REACH compliance and EPD support sustainable deployment, while its fixed terminals simplify panel integration and reduce commissioning time.
The breaker complies with IEC 60947-2 and carries CE conformity. ABB notes RoHS and REACH declarations, and EN45555 recyclability metrics. The EC Declaration of Conformity and installation manuals are provided to support regulatory audits and safe field use.
With 20,000 mechanical cycles and a modest 54.2 W power loss per pole, the unit offers long service life and lower energy waste compared with lower-rated devices. Its high current capability reduces the need for parallel breakers, improving reliability and lowering total cost of ownership over the asset lifetime.
