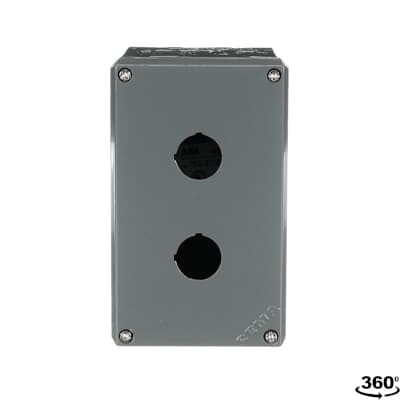

ABB 1SFA170802R1002 Enclosure - IP66, 2-Hole Conduit Entry
Part Number: 1SFA170802R1002
Quick Summary
ABB 1SFA170802R1002 Enclosure protects pilot devices in demanding industrial environments, delivering rugged control-panel protection. This enclosure helps reduce field failures by guarding sensitive electronics from dust, water spray, and mechanical interference. Industry users require reliable ingress protection, mounting flexibility, and cross-region compliance, which this unit delivers with CE declarations, UL certification, and RINA/BV attestations alongside IP66 protection. By standardizing on ABB pilot-device compatibility and a 2-hole conduit-entry design, it streamlines installation and lowers total cost of ownership, while supporting scalable solutions for evolving automation needs.
Product Information
Extended Description
1SFA170802R1002 ABB: 2-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100000
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
75 mm
Product Net Height
145 mm
Product Net Weight
0.44 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.44 kg
Package Level 1 EAN
7320500518854
eClass
V11.0 : 27371205
E-Number (Finland)
2307493
E-Number (Sweden)
3705901
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature: 2-Hole enclosure with conduit-entry design provides straightforward wiring access and robust mounting options. Business Impact: reduces install time and wiring errors, boosting panel-building efficiency and reliability. Application: ideal for machine builders wiring ABB pilot devices MP1, MP2, MP3, MP4, MPM1 and related series in compact control cabinets. Feature: IP66 rated housing with broad NEMA compatibility protects against dust and washdown environments. Business Impact: minimizes field failures and extends service life, lowering maintenance costs. Application: suitable for factory floors and machines exposed to moisture, dust, and temperature changes. Feature: Aluminum gray housing at 0.44 kg with precise dimensions (87 mm W x 75 mm D x 145 mm H) delivers a lightweight yet durable enclosure. Business Impact: simplifies handling, inventory management, and on-site installation. Application: supports quick integration in panel assemblies and pilot-device layouts. Feature: Wide device compatibility including MP1–MP4, MPM and KP series reduces parts diversity. Business Impact: lowers procurement complexity and stock-keeping costs. Application: multi-machine environments with standardized ABB pilot devices. Feature: Certifications and declarations (CE DoC, UL, CB, RINA, BV) ensure regulatory compliance. Business Impact: accelerates approvals and enables global deployment. Application: suitable for international projects and multi-region rollouts.
Get a Quick Quote for a ABB 1SFA170802R1002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170802R1002?
Enquire Now
FAQs
This enclosure is designed for broad pilot-device compatibility, including MP1, MP2, MP3, MP4, MPM1, and related series. The 2-hole conduit-entry design simplifies wiring and mounting inside compact control cabinets, enabling quick, repeatable installations across multiple machines without redesigning panels.
The unit features IP66 protection and is compatible with multiple NEMA types (Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, Type4X). It operates from -30 to 70 °C ambient, ensuring reliable performance in harsh factory environments and during washdowns or dust exposure.
The enclosure carries CE Declaration of Conformity, UL certification, CB, RINA, and BV attestations. These certifications help streamline cross-border approvals, supplier audits, and customer acceptance in diverse markets.
Dimensions are 87 mm wide, 75 mm deep, and 145 mm high, with a net weight of 0.44 kg. The grey aluminum housing, 2-hole design, and conduit-entry feature simplify wiring, reduce panel footprint, and support easy integration with existing ABB pilot-device layouts.
By standardizing on ABB pilot devices and an IP66-rated enclosure, you gain reliable protection, lower maintenance costs, and faster installations. The wide device compatibility reduces bill-of-materials complexity, while cross-regional certifications expedite global deployments and customer approvals, improving overall return on investment for automation projects.
