ABB 1SFA170803R1003 Enclosure - IP66 Aluminum
Part Number: 1SFA170803R1003
Quick Summary
ABB 1SFA170803R1003 Enclosure is a rugged control panel housing designed for industrial electrical installations. It protects sensitive pilot devices in harsh environments while keeping wiring tidy and accessible. Many engineers struggle with dust, moisture, and thermal stress that threaten safety and uptime; this enclosure mitigates those risks with an IP66-rated grey aluminum body and a conduit-entry design that simplifies installation. The product carries CE and UKCA declarations for safety-critical applications, UL certification for the P9-series lineup, and BV/RINA endorsements for demanding marine and industrial use. For OEMs and panel builders, the combination of robust protection and compatible mounting options reduces warranty issues and accelerates project timelines. Use this enclosure where durability, safety compliance, and clean internal organization matter most.
Product Information
Extended Description

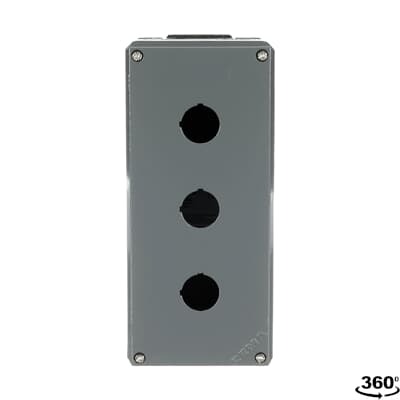

1SFA170803R1003 ABB: 3-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100000
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
100 mm
Product Net Height
195 mm
Product Net Weight
0.695 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
195 mm
Package Level 1 Gross Weight
0.695 kg
Package Level 1 EAN
7320500520321
eClass
V11.0 : 27371205
E-Number (Finland)
2307494
E-Number (Sweden)
3705905
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature: IP66-rated grey aluminum enclosure with broad NEMA compatibility (Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, Type4X). Business Impact: Superior ingress protection minimizes washdown risk and downtime, supporting compliant, long-life control panels. Application: Ideal for outdoor or harsh indoor environments handling pilot devices and control circuits. Feature: With holes and conduit entry plus normal socle mounting. Business Impact: Simplifies wiring and mounting, reducing installation time and field wiring errors. Application: Suitable for panel builders integrating MP-series pilot devices in process equipment. Feature: Compact dimensions (87 mm width, 100 mm depth, 195 mm height) and weight (0.695 kg). Business Impact: Optimizes space in control cabinets while preserving internal clearance for connectors and modules. Application: Great for compact control panels in machines with limited footprint. Feature: Material compliance and operating range. Business Impact: Aluminum construction resists corrosion; wide operating temperature (-30 to 70 °C) supports diverse environments while meeting RoHS/REACH expectations. Application: Marine, industrial automation, and process facilities with temperature variation. Feature: Certifications and compatibility for procurement. Business Impact: CE, UKCA, UL, CB, BV, RINA declarations streamline supplier qualification and regulatory readiness. Application: Global sourcing for pilot-device enclosures with multi-standard compliance.
Get a Quick Quote for a ABB 1SFA170803R1003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170803R1003?
Enquire Now
FAQs
The 1SFA170803R1003 is designed to accommodate a wide range of MP-series pilot devices (MP1 through MP4, MPM1, KP6, and related modules) within its 3-hole, normal socle layout. The conduit-entry design and standard mounting pattern simplify integration into existing panel designs, while the aluminum housing provides robust protection in dusty or washdown environments. This compatibility supports streamlined component sourcing and reduced engineering time for control panels.
This enclosure includes a 3-hole configuration with a normal socle and conduit-entry capability, which simplifies wiring and mounting onto panels or frame structures. The preconfigured hole pattern accelerates assembly, and the rugged aluminum body supports secure installation in demanding environments. Its compact footprint helps maintain space efficiency in compact control cabinets without compromising accessibility to internal connections.
The enclosure carries CE and UKCA declarations for safety-critical pilot-device applications, UL certification for P9-series devices, and RINA/BV endorsements for marine and industrial use. It aligns with RoHS and REACH requirements and provides a robust basis for regulatory compliance across global projects, making procurement easier for multiregional deployments.
The unit operates from -30 to 70 °C and features an IP66-rated housing, delivering excellent protection against dust and water ingress in harsh industrial settings. Its aluminum construction offers corrosion resistance, while the enclosure supports stable operation in varied environments, including exposure to washdowns, outdoor installations, and temperature fluctuations common in manufacturing plants.
By providing high ingress protection, durable aluminum construction, and broad regulatory certifications, the enclosure reduces maintenance frequency and risk of field failures. Its compatibility with standard pilot devices and simplified mounting lowers installation time, while longevity in challenging environments minimizes replacement cycles and warranty calls, delivering a favorable return on investment for automation projects.
