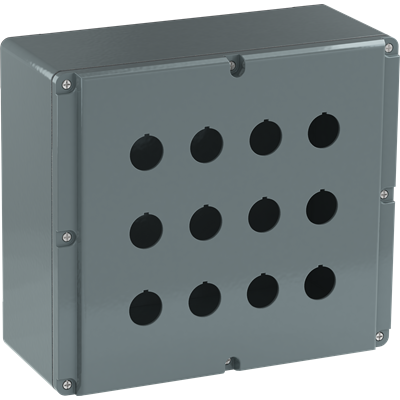

ABB 1SFA170808R1012 080SP12 Enclosure - IP66
Part Number: 1SFA170808R1012
Quick Summary
ABB 1SFA170808R1012 080SP12 Enclosure is a rugged grey aluminum housing designed to protect pilot devices and control circuits in industrial environments. The 12-hole design with conduit entries simplifies wiring and allows flexible cable routing in compact panels. It carries IP66 protection for dust and water ingress and is compatible with ABB pilot-device families such as MP, KP and MPM series. The enclosure supports CE and UL conformity, along with RoHS and REACH compliance, enabling global projects while reducing risk. By offering durable protection and straightforward installation, it lowers maintenance costs, minimizes downtime, and helps ensure regulatory compliance in harsh environments. Its robust build also supports reliable operation in space-constrained control cabinets, delivering long-term system performance.
Product Information
Extended Description
1SFA170808R1012 ABB: 12-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100000
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
230 mm
Product Net Depth / Length
101.5 mm
Product Net Height
205 mm
Product Net Weight
1.685 kg
Color
Grey
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
101.5 mm
Package Level 1 Depth / Length
230 mm
Package Level 1 Height
205 mm
Package Level 1 Gross Weight
1.685 kg
Package Level 1 EAN
7320500518861
eClass
V11.0 : 27371205
E-Number (Finland)
2307498
E-Number (Sweden)
3705906
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → Business Impact → Application: The 12-hole enclosure design enables flexible wiring and scalable panel layouts, reducing installation time and wiring errors in complex control cabinets. This translates to measurable productivity gains on project schedules and a lower total cost of ownership for panel builders. Application: Control panels and automation racks in manufacturing lines with limited space. Feature → Business Impact → Application: Aluminum housing provides corrosion resistance and structural rigidity, extending enclosure life in harsh environments and reducing replacement costs. Application: Outdoor or damp plant areas where environmental exposure is a concern. Feature → Business Impact → Application: IP66 protection guards against dust ingress and water intrusion, increasing uptime and lowering maintenance cycles. Application: Environments with sweeping dust or direct exposure to moisture. Feature → Business Impact → Application: Conduit entry and normal socle simplify wiring and mounting, speeding installation and improving ingress protection. Application: Standard ABB pilot-device deployments in MP/KP/MPT series ecosystems. Feature → Business Impact → Application: Broad compatibility with ABB device families like MP1, MP2, MP3, MP4, MPM1, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4 and more reduces part obsolescence. Application: Multi-device configurations in centralized or distributed control panels. Feature → Business Impact → Application: Regulatory and environmental compliance with CE, UL, RoHS and REACH support, simplifying procurement for global projects. Application: Global deployments needing certified hardware.
Get a Quick Quote for a ABB 1SFA170808R1012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170808R1012?
Enquire Now
FAQs
Begin with a secure mounting on a flat surface or suitable frame, then route cables through the predrilled conduit entry points. Use the 12-hole interior for orderly wiring and label connectors to prevent misrouting. Seal entries to maintain IP66 protection, and verify panel clearance and ventilation to sustain reliable operation in harsh environments.
Its rugged aluminum housing offers durable protection and corrosion resistance, while IP66 ingress protection guards against dust and water. The 12-hole interior accommodates multiple pilot devices and control components, enabling neat wiring and scalable panel designs that reduce commissioning time and field maintenance.
The enclosure is designed to be compatible with a broad ABB pilot-device ecosystem, including MP1, MP2, MP3, MP4, MPM1, and KP6 families, among others such as MPET3, MPEP3, MPEK3, MPET4 and MPEP4. Always verify mounting plate compatibility and device dimensions against the data sheet for a perfect fit.
The enclosure carries CE and UL conformity, along with RoHS and REACH compliance. It also highlights additional certifications such as BV and RINA, underpinning global eligibility for diverse projects while ensuring safety, environmental, and regulatory requirements are met.
Expect reduced downtime due to its IP66-rated protection and robust aluminum housing that withstands harsh environments. The clean 12-hole wiring layout speeds installation, minimizes wiring errors, and lowers labor costs, while CE/UL compliance broadens project eligibility and mitigates regulatory risks.
