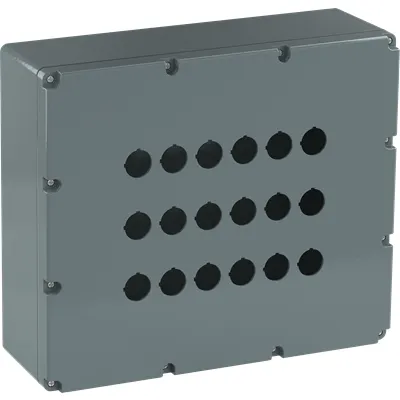

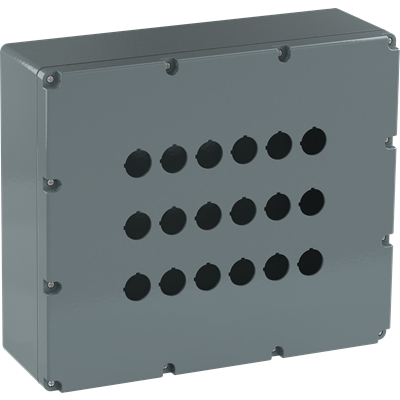

ABB 1SFA170809R1018 Enclosure with conduit entry - IP66
Part Number: 1SFA170809R1018
Quick Summary
Enclosure solutions from ABB protect pilot devices in rugged industrial control systems. Many engineers struggle with ingress, dust, corrosion, and costly downtime in harsh environments. This model features IP66 housing protection, CE and UKCA declarations, and UL/RINA/BV certifications, ensuring global compliance across manufacturing sites. With an 18-hole normal socle and conduit entry, it delivers installation flexibility, faster commissioning, and easier field wiring. The grey aluminum enclosure reduces weight without sacrificing strength, offering reliable protection for MP and pilot-device families while supporting scalable automation architectures. This translates to lower maintenance costs and safer, longer-lasting control panels in demanding environments.
Product Information
Extended Description
1SFA170809R1018 ABB: 18-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100000
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
300 mm
Product Net Depth / Length
101.5 mm
Product Net Height
257 mm
Product Net Weight
2.891 kg
Color
Grey
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
101.5 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Height
257 mm
Package Level 1 Gross Weight
2.891 kg
Package Level 1 EAN
7320500518748
eClass
V11.0 : 27371205
E-Number (Finland)
2307499
E-Number (Sweden)
3705910
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
IP66 protection provides robust ingress resistance, reducing the risk of dust and water damage and extending panel life in outdoor or washdown environments. Business impact: lower unplanned downtime and fewer field service calls; Application: ready-to-install housing for control panels in harsh surroundings. Aluminum grey housing with conduit entry enhances durability and corrosion resistance, increasing service intervals and lowering replacement costs. Application: ideal for OEMs installing conduit-fed wiring in industrial plants. The 18-hole enclosure with normal socle enables versatile mounting options, simplifying pilot-device integration and reducing custom fabrication. Business impact: faster assembly and fewer mounting adapters; Application: modular control stations with MP/M EP series devices. Wide compatibility with ABB pilot devices, including MP series and related modules, reduces stocking complexity. Application: streamlined procurement for large-scale deployments. Accurate dimensions and a manageable weight (300 mm width, 101.5 mm depth, 257 mm height, 2.891 kg) support easy handling, precise panel design, and safe lifting during installation. The enclosure’s certifications—CE, UKCA, UL, RINA, BV—address regulatory risk, speeding time-to-market and ensuring global sales readiness. Application: regulated industries such as process automation and machinery manufacturing.
Get a Quick Quote for a ABB 1SFA170809R1018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170809R1018?
Enquire Now
FAQs
The enclosure is designed for ABB pilot devices and supports a broad family including MP-series variants. It features an 18‑hole normal socle and conduit entry to accommodate multiple mounting options, simplifying panel assembly and reducing the need for custom adapters. For best results, verify device compatibility against the 'Suitable For' specification and consult the Data Sheet for mounting patterns.
This enclosure delivers IP66 protection, guarding against dust ingress and powerful water jets. It operates from -30 to 70 °C and is constructed from gray aluminum, balancing durability with light weight. The housing is designed to maintain performance in demanding environments typical of process automation and outdoor installations.
Yes. With IP66 ingress protection and a corrosion-resistant aluminum body, the enclosure is well suited for outdoor locations, washdown zones, and harsh industrial settings. Its conduit entry and robust mounting points support reliable, code-compliant installations in environments where environmental exposure would challenge lesser enclosures.
The unit carries CE and UKCA declarations, with UL, RINA, and BV certifications documented for global safety and reliability. RoHS, REACH compliance, and TSCA declarations are also listed, making it suitable for regulated industries and multinational manufacturing environments.
The 300 mm width, 101.5 mm depth, and 257 mm height, combined with a 2.891 kg weight, enable straightforward handling and precise panel planning. The conduit entry and versatile mounting reduce wiring time and field adjustments, lowering commissioning time and maintenance costs while improving long-term uptime for automation systems.
