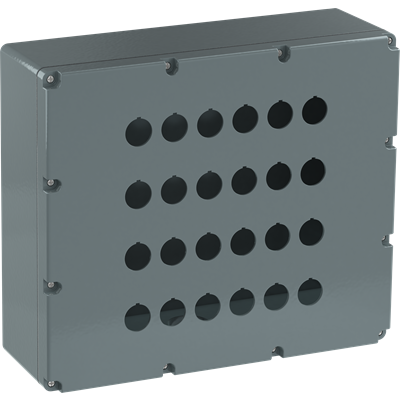

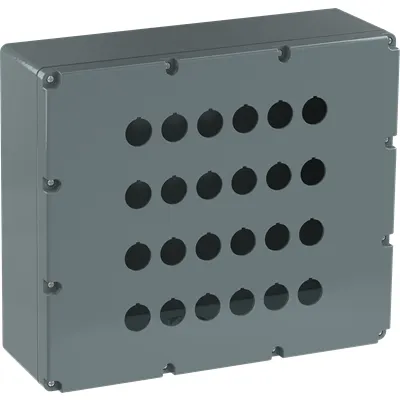

ABB 1SFA170810R1024 Enclosure - IP66
Part Number: 1SFA170810R1024
Quick Summary
ABB 1SFA170810R1024 is a 24-hole enclosure designed for pilot devices in control panels and electrical cabinets. Engineers often struggle with reliable mounting, cable entry, and weather resilience in automation enclosures. With IP66 protection, aluminum construction, and CE/UKCA/UL declarations, it supports global deployments and compliance. Its compatibility with ABB MP/CP pilot devices and a broad mounting footprint translates to faster installation, reduced field service, and lower total cost of ownership. With a 24-hole layout, it supports modular expansion and future upgrades in evolving control schemes. The unit's wide operating temperature range (-30 to 70 °C) enables reliable performance in demanding environments, reducing downtime and service calls.
Product Information
Extended Description
1SFA170810R1024 ABB: 24-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100000
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
300 mm
Product Net Depth / Length
101.5 mm
Product Net Height
257 mm
Product Net Weight
2.912 kg
Color
Grey
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
101.5 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Height
257 mm
Package Level 1 Gross Weight
2.912 kg
Package Level 1 EAN
7320500518793
eClass
V11.0 : 27371205
E-Number (Finland)
2307500
E-Number (Sweden)
3705911
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature: Grey aluminum housing provides rugged protection against dust, moisture, and mechanical wear. Business Impact: Reduces corrosion risk, extends service life, and lowers lifecycle costs. Application: Suitable for factory floors, packaging lines, and machine control cabinets where rugged protection is essential. Feature: 24-hole layout with a normal socle and integrated conduit entry. Business Impact: Enables flexible mounting schemes and reduces the need for additional adapters or external conduits. Application: Ideal for ABB pilot devices and modular control panels where quick reconfiguration is common. Feature: Dimensions of 300 mm width, 101.5 mm depth, and 257 mm height with a 2.912 kg weight. Business Impact: Predictable footprint and manageable weight simplify installation, retrofits, and handling. Application: Fits standard panel cutouts while providing ample wiring space. Feature: Operating temperature range from -30 to 70 °C and IP66 protection. Business Impact: Ensures reliable operation across climate zones, minimizing downtime. Application: Outdoor enclosures or harsh factory environments. Feature: Certifications include CE, UKCA, UL, RINA, BV, RoHS, REACH, and WEEE declarations. Business Impact: Regulatory compliance reduces certification delays and enables global market access. Application: Suitable for regulated industries such as process automation and electrical installations. Feature: Compatibility with ABB MP/CP pilot devices and broad accessory support. Business Impact: Shortens design cycles and lowers spare parts inventory. Application: Accelerates field upgrades and scalable automation projects. Feature: Documentation and downloads include Data Sheet, safety and installation instructions, and CAD drawings. Business Impact: Improves installer confidence and reduces wiring errors. Application: Used by engineering and procurement teams for precise integration in BOMs and CAD models.
Get a Quick Quote for a ABB 1SFA170810R1024
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170810R1024?
Enquire Now
FAQs
Yes. The enclosure is designed for ABB pilot devices across MP and CP series, including MP1, MP2, MP3, MP4, and related modules. The 24-hole layout and normal socle support modular mounting, enabling straightforward integration with ABB control panels and automation schemes.
Plan for a standard control-panel footprint with 300 mm width and 257 mm height. The unit features integrated conduit entry and a 24-hole layout for flexible mounting. It weighs 2.912 kg, so provide adequate handling tools. Use the CAD drawings and data sheet to verify cutouts and mounting hardware for a smooth install.
This enclosure carries CE, UKCA, UL, RINA, and BV certifications, along with RoHS and REACH declarations. These approvals facilitate regulatory compliance, reduce time-to-deployment in global sites, and support installation in regulated industries such as process automation and machine building.
The IP66-rated aluminum housing provides excellent ingress protection against dust and water, while the -30 to 70 °C operating range supports operation across diverse climates. This combination minimizes downtime, reduces maintenance needs, and extends service life in factory floors, outdoor installations, and other challenging automation environments.
Investing in this enclosure can lower total cost of ownership by reducing field modifications, enabling faster installations, and minimizing downtime due to robust protection and broad device compatibility. With standardization for MP/CP pilot devices and readily available documentation, teams save time during design, procurement, and commissioning.
