ABB 1SFA170832R1002 Enclosure - IP66, CE/UL/UKCA Certified
Part Number: 1SFA170832R1002
Quick Summary
ABB 1SFA170832R1002 Enclosure is a rugged aluminum housing designed for control panels in demanding industrial environments. Engineers often struggle with protecting sensitive pilot devices and control electronics while meeting space, conduit and mounting constraints. This enclosure delivers robust IP66 housing protection, wide NEMA compatibility (Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, Type4X) and trusted certifications, including CE, UL, and UKCA, plus BV and RINA attestations for added reliability. By combining light weight aluminum with durable finish and a deep socle, it minimizes corrosion risk and simplifies wiring. For machine builders and panel integrators, the result is faster deployment, lower maintenance, and compliant, durable installations that support a broad range of automation strategies and pilot-device ecosystems.
Product Information
Extended Description

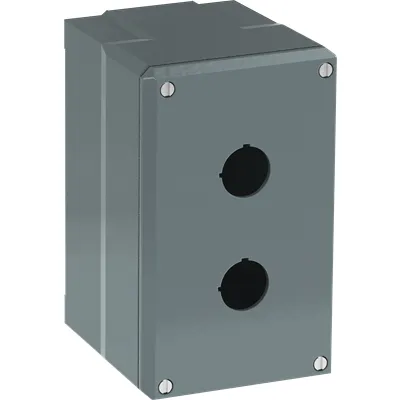

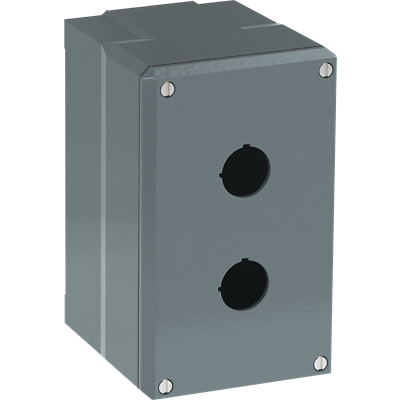

1SFA170832R1002 ABB: 2-HOLE ENCLOSURE DEEP SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
100 mm
Product Net Height
145 mm
Product Net Weight
0.54 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Deep socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.54 kg
Package Level 1 EAN
7320500518885
eClass
V11.0 : 27371205
E-Number (Finland)
2307522
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → The enclosure uses lightweight, corrosion-resistant aluminum with a deep socle and conduit entry, delivering improved durability and wiring space. Business Impact → Reduced maintenance costs and longer service life in harsh environments, enabling reliable control panels in manufacturing lines and process automation. Application → Ideal for control-panel builds that require reliable conduit routing and pilot-device mounting in packaging and process industries. Feature → NEMA Type1/Type12/Type13/Type3/3R/3S/4/4X compatibility and IP66 housing, ensuring suitable protection for indoor and outdoor installations. Business Impact → Lower total cost of ownership due to higher ingress protection and fewer enclosure-related failures. Application → Use in washdown areas and dusty environments common in food & beverage and automotive. Feature → Broad compatibility with MP, MEP, MPM, KP series pilots and related modules, simplifying integration. Business Impact → Faster design cycles and reduced spare-part inventory. Application → Pilot devices and control circuits on machines and lines. Feature → Comprehensive certifications and RoHS/REACH declarations (CE, UKCA, UL/cUL, CB, BV, RINA). Business Impact → Regulatory compliance and risk mitigation across global deployments. Application → Global product rollouts across multiple regions. Feature → CAD data availability (2D/3D) to accelerate engineering workflows. Business Impact → Streamlined panel layout and precise mounting planning. Application → Design and install panels with confidence and fewer reworks.
Get a Quick Quote for a ABB 1SFA170832R1002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170832R1002?
Enquire Now
FAQs
The enclosure is designed to support a broad range of pilot devices and MP/MPI/MET series modules listed under Suitable For, including MP1 through MP4, MPM1, KP6, and related MEP/M2/M3 configurations. This enables rapid integration with standard automation hardware, reducing engineering time and minimizing custom enclosure needs.
This enclosure provides IP66 protection and supports operation from -30 to 70 °C, making it suitable for outdoor installations, washdown zones, and harsh factory floors without compromising performance or reliability.
The unit carries CE and UKCA declarations, UL/cUL certificates, CB and RINA/BV attestations, and RoHS/REACH compliance. These certifications support multi-region deployment and help meet safety, environmental, and product-safety standards in aerospace, automotive, and process industries.
With precise dimensions (87 mm W, 100 mm D, 145 mm H) and CAD files available in 2D/3D, engineers can quickly integrate the enclosure into enclosure layouts, optimize conduit routing, and reduce layout errors during panel design and assembly.
Rugged aluminum construction, IP66 ingress protection, broad NEMA compatibility, and extensive certifications lower maintenance needs, simplify sourcing, and accelerate time-to-value for panel assemblies, delivering longer service life and fewer field failures.
