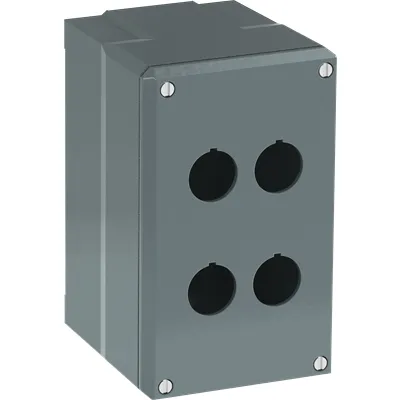

ABB 1SFA170834R1004 Enclosure - IP66 Grey Aluminum
Part Number: 1SFA170834R1004
Quick Summary
ABB 1SFA170834R1004 Enclosure is a rugged gray aluminum housing designed for industrial control and pilot-device mounting in harsh environments. In projects with mixed devices, wiring and enclosure compatibility can slow timelines and jeopardize compliance. This unit delivers broad protection and compatibility, including IP66 ingress protection and EN/NEMA options, supported by CE, UL/cULus, BV, and UKCA certifications. The combination reduces field issues, simplifies audits, and cuts downtime during installation and maintenance. By pairing robust enclosure performance with CAD data and wide device compatibility, it helps engineers shorten design cycles while maintaining safety and reliability across automation panels.
Product Information
Extended Description
1SFA170834R1004 ABB: 4-HOLE ENCLOSURE DEEP SOCLE WITH HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
100 mm
Product Net Height
145 mm
Product Net Weight
0.53 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Deep socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.53 kg
Package Level 1 EAN
7320500520284
eClass
V11.0 : 27371205
E-Number (Finland)
2307523
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature: Aluminum enclosure with IP66 protection and deep socle. Business Impact: Provides robust dust and water ingress protection while reducing corrosion risk in factory floors, enabling longer service life and lower maintenance costs. Application: Ideal for control panels exposed to vibration, humidity, or washdown in manufacturing lines. Feature: Conduit entry and four-hole deep socle. Business Impact: Simplifies wiring, supports neat cable routes, and accelerates compliant installations. Application: Surface- or panel-mounted installations with flexible conduit routing. Feature: Precise dimensions and lightweight build (87 mm W x 100 mm D x 145 mm H; 0.53 kg). Business Impact: Easy to integrate into compact cabinets and reduces shipping weight for field deployments. Application: Space-constrained control enclosures in automation cabinets. Feature: Broad device compatibility including MP-series pilots and the 080SP main type. Business Impact: Minimizes parts assortment and BOM complexity, speeding up procurement. Application: Multi-device automation panels with standardized mounting. Feature: Certifications and compliance package (CE, UL/cULus, BV, UKCA; RoHS/REACH). Business Impact: Streamlines regulatory approvals and vendor qualification. Application: Global projects requiring rigorous safety and environmental standards.
Get a Quick Quote for a ABB 1SFA170834R1004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170834R1004?
Enquire Now
FAQs
The enclosure offers a four-hole, deep socle design with conduit entry, enabling both surface and panel mounting. It supports a broad range of ABB and third-party pilot devices, and it ships with CAD data for quick layout and BOM creation. This setup minimizes wiring complexity while ensuring a clean, compliant installation in automation panels.
This enclosure carries CE declarations, UL/cULus certification, BV certification, and UKCA marking. These certifications align with global electrical safety and reliability standards, support regulatory compliance and customer audits, and help prevent rework during commissioning, especially on multinational projects with strict supplier qualification requirements.
Yes. The product lists extensive compatibility with ABB MP-series pilots and a wide range of pilot-device families. It also supports the 080SP main type, and CAD drawings are available to ensure precise fit within panel layouts, reducing design iterations and enabling smoother procurement and installation workflows.
Operating temperature ranges from -30 to 70 °C, with storage from -40 to +70 °C. The enclosure provides IP66 protection, delivering robust dust and water ingress resistance suitable for harsh industrial settings, including washdown environments and vibration-prone areas, while maintaining internal electronics safety.
The combination of rugged aluminum construction, broad device compatibility, and verified certifications reduces field failures and simplifies audits. Quick wiring via conduit entry and holes lowers installation time, while CAD data and standardized main type compatibility shorten design and procurement cycles, delivering measurable uptime gains and a faster return on investment for automation projects.
