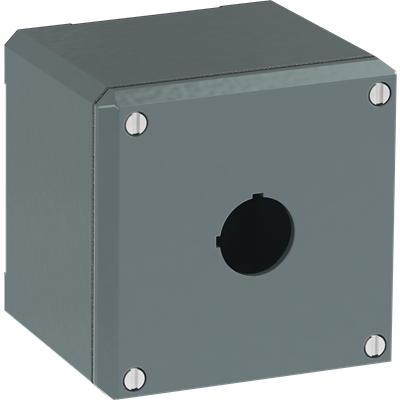

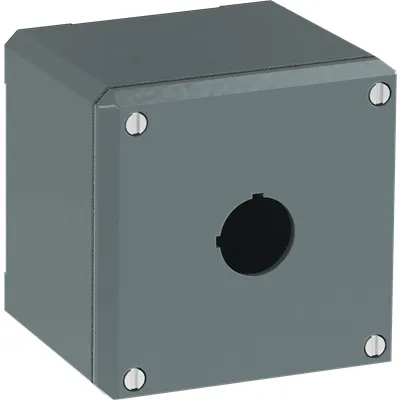

ABB 1SFA170836R3001 Enclosure - IP66 Aluminum Housing
Part Number: 1SFA170836R3001
Quick Summary
ABB 1SFA170836R3001 Enclosure protects control circuits and pilot devices in harsh industrial environments. Engineers often contend with enclosures that leak at the seal, complicate wiring, or fail under wide temperature swings. This model delivers IP66 protection, a broad NEMA range (Type 1 through 4X), and CE, UL/cULus, and other certifications to support global compliance. With a lightweight aluminum housing and a compact 87x87x75 mm footprint, it reduces panel space while maintaining rugged durability. CAD drawings and technical data expedite design and procurement, helping maintenance teams deploy quickly and minimize downtime in production lines.
Product Information
Extended Description
1SFA170836R3001 ABB: 1-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITHOUT CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
75 mm
Product Net Height
87 mm
Product Net Weight
0.335 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
Without conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
87 mm
Package Level 1 Gross Weight
0.335 kg
Package Level 1 EAN
7320500518731
eClass
V11.0 : 27371205
E-Number (Finland)
2307525
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → Aluminum enclosure with IP66 protection delivers reliable dust and water ingress resistance, reducing unplanned downtime and enabling operation in dirty or wet environments. Business Impact → Higher equipment uptime and lower repair costs in manufacturing lines; Application → Ideal for control panels in packaging, material handling and process industries needing rugged enclosures. Feature → NEMA compatibility across Type 1, Type 12, Type 13, Type 3, Type 3R, Type 3S, Type 4, Type 4X ensures broad installation flexibility. Business Impact → One enclosure covers multiple regional requirements, simplifying spares and reducing total cost of ownership. Application → Suitable for pilot devices and emergency stop circuits in machines across MP, KP, and CP families. Feature → 1-Hole enclosure with holes without conduit entry and normal socle simplifies wiring and mounting. Business Impact → Faster installation and cleaner panel layouts, reducing labor costs. Application → OEMs installing control devices on compact panels benefit from quicker commissioning. Feature → Lightweight aluminum housing (0.335 kg) and compact footprint (87x87x75 mm) enable easy handling and space savings. Business Impact → Lower shipping and helicopter costs, easier on-site mounting. Application → Retrofit projects and modular panel builds. Feature → Comprehensive compliance and documentation including RoHS, REACH, BV, CB, UL, and CE declarations. Business Impact → Reduced regulatory risk and smoother audits across regions. Application → Global deployments requiring multi-certification support.
Get a Quick Quote for a ABB 1SFA170836R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170836R3001?
Enquire Now
FAQs
The 1SFA170836R3001 is designed as a 1-hole enclosure with a normal socle and without conduit entry, offering broad compatibility with MP1, MP2, MP3, MP4 and related pilot devices, simplifying panel design and reducing custom adaptors.
It provides IP66 protection and supports operation from -30 to 70 °C, making it suitable for outdoor or harsh indoor environments and ensuring reliable performance in variable temperatures.
Recommended for control panels and pilot-device assemblies in industrial automation, including machine control, safety circuits, and EMERGENCY STOP deployments across MP, KP, CP, and related device families.
The enclosure carries CE Declaration of Conformity, UL/cULus certificates, CB, RINA, and BV certifications, along with RoHS/REACH compliance to support global regulatory requirements.
Its lightweight aluminum construction, compact form, and ready CAD/technical data reduce wiring time and design effort, lowering labor costs and enabling faster serviceability and panel upgrades.
