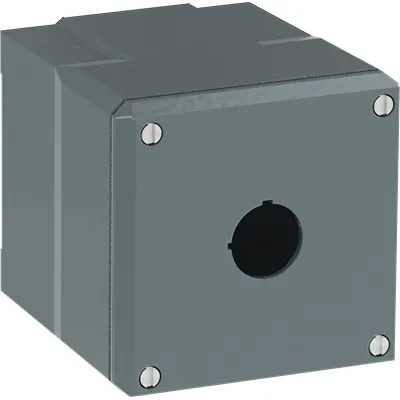

ABB 1SFA170839R3001 Enclosure - IP66/NEMA Type4X
Part Number: 1SFA170839R3001
Quick Summary
ABB 1SFA170839R3001 enclosure protects pilot devices in compact control panels. Engineers face space constraints, precision mounting, and the need for robust protection in harsh environments. This enclosure carries CE and UL/cULus declarations, BV and RINA certifications, and RoHS/REACH compliance, supporting regulatory requirements across global plants. With a grey aluminum housing, IP66 protection, and a deep socle with mounting holes, it delivers reliable, durable performance. Its wide compatibility with ABB pilot device families and a broad range of M and CP modules helps future-proof control panels while reducing rework and inventory complexity.
Product Information
Extended Description
1SFA170839R3001 ABB: 1-HOLE ENCLOSURE DEEP SOCLE WITH HOLES WITHOUT CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
100 mm
Product Net Height
87 mm
Product Net Weight
0.416 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
Without conduit entry
Sub-Function 2
Deep socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
87 mm
Package Level 1 Gross Weight
0.416 kg
Package Level 1 EAN
7320500518724
eClass
V11.0 : 27371205
E-Number (Finland)
2307528
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature: Aluminum gray housing provides rugged durability and corrosion resistance. Business impact: reduces maintenance needs and downtime in damp or wash-down environments. Application: ideal for outdoor or factory floor enclosures protecting pilot devices. Feature: IP66 protection and broad NEMA compatibility. Business impact: maintains electrical integrity against dust and water in challenging settings. Application: suitable for harsh industrial environments. Feature: 1-hole deep socle with holes and without conduit entry. Business impact: simplifies mounting alignment and cable routing, reducing installation time. Application: fits tight panel spaces and streamlines wiring during retrofits. Feature: Compact dimensions and modest weight (87 mm x 87 mm x 100 mm; 0.416 kg). Business impact: eases space planning and enclosure integration. Application: ideal for limited cabinet volumes and modular automation. Feature: Wide compatibility with ABB MP/M, KP, CP and M-series modules. Business impact: lowers BOM variety and supports scalable automation. Application: suitable for pilot device ecosystems from ABB. Feature: Certifications and compliance (CE, UL/cULus, BV, RINA, RoHS, REACH). Business impact: reduces regulatory risk and accelerates multi-region deployments. Application: ready for global production environments and customer-specific standards.
Get a Quick Quote for a ABB 1SFA170839R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170839R3001?
Enquire Now
FAQs
The enclosure is designed for broad ABB pilot device compatibility, including MP/M and CP series products, KP modules, and multiple M-series variants. For exact fit, verify the 'Suitable For' list in the datasheet and compare mounting hole patterns, connector positions, and module envelope against the enclosure dimensions.
This enclosure carries CE Declaration of Conformity, UL/cULus certification, BV certificate, and RINA certification, along with RoHS and REACH compliance. It is not in the WEEE scope and adheres to applicable safety and environmental requirements for global deployment.
Product net width is 87 mm, net height is 87 mm, and net depth is 100 mm, with a net weight of 0.416 kg. These compact dimensions aid in space planning for tight control cabinets and support easy integration with existing mounting patterns.
The enclosure operates from -30 to 70 °C and provides IP66 protection, with NEMA compatibility for Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, and Type4X. This makes it suitable for dusty, wet, and wash-down industrial environments demanding robust protection.
Ideal for pilot device assemblies in control panels and emergency stop enclosures, the deep socle and mounting holes simplify installation and alignment, while broad module compatibility supports scalable automation. The combination of rugged aluminum construction and global certifications reduces rework, extends service life, and accelerates multi-region deployments.
