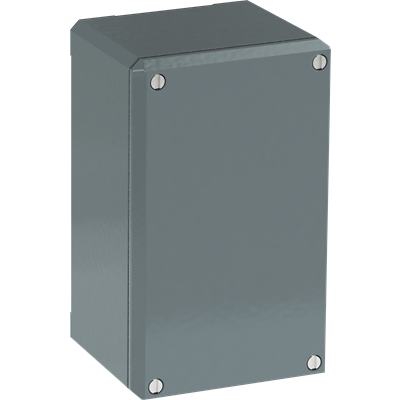

ABB 1SFA170841R2000 Enclosure - IP66 Aluminum Housing
Part Number: 1SFA170841R2000
Quick Summary
ABB 1SFA170841R2000 enclosure protects pilot devices in harsh industrial environments. This enclosure shields control circuits from dust, water, and contamination while fitting into compact panels. Operators often struggle with panel ingress protection and wiring access in tight spaces, making reliable installations difficult. The unit carries CE, UKCA, UL certifications and RoHS/REACH declarations, with an IP66 rating that withstands washdown and harsh environments. Its wide operating temperature range (-30 to 70 C) and aluminum construction further support long service life. By combining robust protection with conduit entry and a normal socle, this enclosure enables faster assembly, easier maintenance, and lower total cost of ownership for automation panels.
Product Information
Extended Description
1SFA170841R2000 ABB: 2-HOLE ENCLOSURE NORMAL SOCLE WITHOUT HOLES WITH CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
75 mm
Product Net Height
145 mm
Product Net Weight
0.444 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
Without holes
Housing Material
Aluminum
Sub-Function
With conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPD1 | MPD2 | MPD3 | MPD4 | MPD5 | MPD11 | MPD12 | MPD13 | MPD14 | MPD15 | MPD16 | MPM1 | MPM2 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3 | MPMT4 | MPMP3 | MPMP4 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | MJS1 | MJS2 | MJS5 | MJS6 | MJS7 | MJS8 | MJS11 | MJS12 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.444 kg
Package Level 1 EAN
7320500520277
eClass
V11.0 : 27371205
E-Number (Finland)
2307454
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → Business Impact → Application: The aluminum housing provides corrosion resistance and durable protection in dusty or humid environments, reducing panel maintenance and extending component life in irrigation, mining, or food and beverage facilities. This supports reliable control cabinet performance for pilot-device installations or factory automation panels with demanding washdown requirements. Feature → Business Impact → Application: IP66 rating delivers robust ingress protection against water and dust, increasing uptime in outdoor or exposure-prone locations and enabling compliant machine guarding across packaging lines or material-handling systems. Feature → Business Impact → Application: Conduit entry and normal socle simplify wiring access and mounting, cutting installation time by streamlining field connections for MP/MPD/MPM modules in control panels. Feature → Business Impact → Application: Wide ambient temperature tolerance (-30 to 70 C) ensures consistent operation in cold storage, outdoor factories, and heated production lines, reducing thermal-related faults and service calls. Feature → Business Impact → Application: Grey aluminum enclosure combines ruggedness with weight efficiency (0.444 kg), enabling easier panel handling and cost-effective distribution in large-scale electrical installations. Feature → Business Impact → Application: NEMA compatibility (Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, Type4X) supports diverse installation codes and regional standards, reducing engineering effort for multi-site rollouts and ensuring compliance across projects.
Get a Quick Quote for a ABB 1SFA170841R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170841R2000?
Enquire Now
FAQs
The 1SFA170841R2000 enclosure is designed to accommodate a wide range of ABB MP/MPI pilot devices and control modules. With a 2-hole layout, conduit entry, and normal socle, it provides flexible mounting and wiring options. This compatibility minimizes BOM diversification and streamlines panel assembly for multi-module configurations.
Conduit entry facilitates clean wiring access and reduces cabling bends, which speeds installation and improves reliability. The 2-hole enclosure format supports compact mounting with reduced footprint, making it ideal for tight control panels and space-constrained automation cabinets while maintaining ingress protection.
The enclosure carries CE and UKCA declarations, UL certification, and RoHS/REACH compliance, along with BV and RINA certifications. These certifications support safe operation, regulatory compliance, and global deployment across regions with varied electrical standards.
With an IP66 housing rating, aluminum construction, and an ambient temperature range of -30 to 70 C, the enclosure withstands washdowns, dust, and wide temperature swings. It suits outdoor or factory-floor installations, reducing risk of moisture ingress and thermal-related failures.
The combination of robust protection, fast wiring access, and broad compatibility reduces installation time and field maintenance. Tight tolerances and durable materials help extend service intervals, resulting in lower lifecycle costs and improved panel reliability for high-volume automation deployments.
