ABB 1SFA170842R3002 Enclosure - IP66 NEMA Type 1-13
Part Number: 1SFA170842R3002
Quick Summary

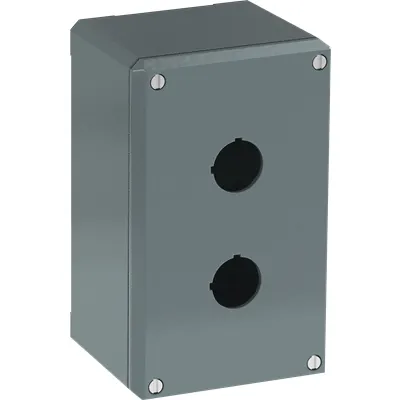

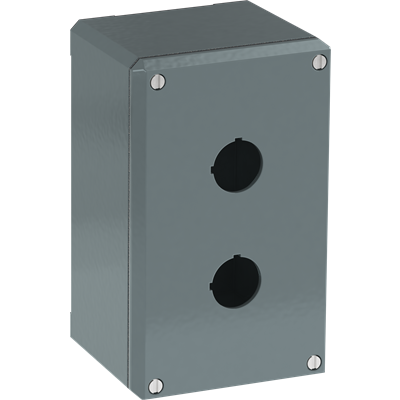

ABB 1SFA170842R3002 Enclosure is a rugged aluminum housing designed for pilot devices in control panels. Engineers often struggle with ingress, corrosion, and mounting constraints in harsh industrial environments. This enclosure delivers CE, UL/cULus, and BV certifications alongside IP66 protection, ensuring safety and long-term reliability. By offering broad compatibility with ABB pilot devices and flexible mounting options, it helps reduce BOM complexity, downtime, and installation time while supporting scalable control panel designs.
Product Information
Extended Description
1SFA170842R3002 ABB: 2-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITHOUT CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
75 mm
Product Net Height
145 mm
Product Net Weight
0.442 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
Without conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.442 kg
Package Level 1 EAN
7320500520260
eClass
V11.0 : 27371205
E-Number (Finland)
2307455
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
IP66-rated aluminum enclosure delivers rugged ingress protection and corrosion resistance, reducing maintenance cycles and improving uptime in harsh environments. The compact 87 mm W x 75 mm D x 145 mm H footprint frees panel space, enabling tighter control-cabinet layouts without compromising accessibility. A 2-Hole enclosure design with holes provides installation flexibility and simplifies cable routing when conduit entries are not required, speeding up wiring and reducing install costs. With NEMA Type 1, 12, 13, 3, 3R, 3S, 4, and 4X compatibility, the enclosure covers a wide range of industry standards, reducing the need for multiple SKUs. Compatibility with ABB MP and MPM pilot devices—including MP1 through MP4, KP6, and more—streamlines sourcing and procurement while ensuring reliable operation in mixed automation architectures. CAD and data-sheet resources (2D/3D files) enable rapid engineering, faster assemblies, and reduced design risk. Operating temperature -30 to 70 °C supports outdoor and indoor installations, delivering consistent performance across environments and helping technicians meet rugged-site requirements.
