ABB 1SFA170850R3004 Enclosure - IP66 Aluminum Grey, UL Certified
Part Number: 1SFA170850R3004
Quick Summary
ABB 1SFA170850R3004 Enclosure is a rugged grey aluminum housing for pilot devices in control panels. Engineers often struggle with moisture ingress, dust, and limited conduit entry that slow wiring and maintenance. This enclosure aligns with CE and UKCA conformity, UL recognition, and BV/RINA approvals to support global compliance and import/export readiness. For projects requiring versatile NEMA compatibility and reliable IP66 protection, it delivers a consistent foundation for scalable automation, while reducing panel-building lead times and lifecycle costs.
Product Information
Extended Description

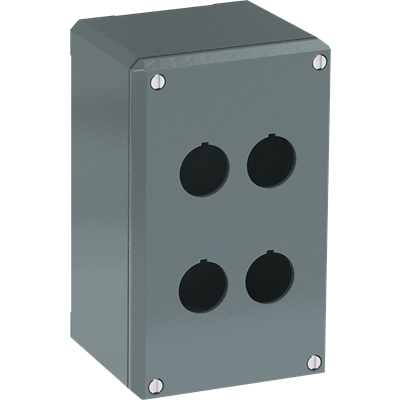

1SFA170850R3004 ABB: 4-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITHOUT CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
75 mm
Product Net Height
145 mm
Product Net Weight
0.453 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
Without conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
145 mm
Package Level 1 Gross Weight
0.453 kg
Package Level 1 EAN
7320500520192
eClass
V11.0 : 27371205
E-Number (Finland)
2307465
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → Business Impact → Application: The 4-hole enclosure with a normal socle and no conduit entry reduces fabrication steps during panel assembly, slashing install time and risk of wiring mistakes in pilot-device layouts. This translates to lower labor costs and faster changeovers in high-mix production lines. Feature → Business Impact → Application: Aluminum grey housing provides robust mechanical protection with excellent heat dissipation for dense control cabinets, improving uptime in harsh environments and enabling compact layouts for MP and KP series panels. Feature → Business Impact → Application: NEMA Type 1, Type 12, Type 13, Type 3, Type 3R, Type 3S, Type 4 and Type 4X compatibility offers flexible installation across machine tools, packaging, and process automation, simplifying procurement and spare-part planning. Feature → Business Impact → Application: IP66 enclosure protection against water and dust minimizes ingress-related failures, reducing maintenance frequency and service costs in outdoor or splash-prone environments. Feature → Business Impact → Application: Product dimensions (87 mm width, 75 mm depth, 145 mm height) and weight (0.453 kg) enable lightweight, tool-free mounting in compact control enclosures, accelerating retrofits and modular upgrades. Feature → Business Impact → Application: Availability of CAD files and data sheets (2D/3D) supports fast digital twin integration and seamless compatibility with engineering workflows, reducing design iterations and improving first-pass success.
Get a Quick Quote for a ABB 1SFA170850R3004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170850R3004?
Enquire Now
FAQs
Yes. The enclosure is designed as a 4-hole, normal-socle unit with holes and without conduit entry, which simplifies mounting and wiring for MP, KP, and related pilot-device configurations. It reduces the need for pre-fabricated conduits and supports fast, panel-ready integration across common automation platforms.
The enclosure is grey aluminum with IP66 protection, suitable for operation from -30 to 70°C and storage from -40 to 70°C. It is compatible with a wide range of NEMA types (Type1/Type12/Type13/Type3/3R/3S/4/4X), enabling reliable performance in dusty, damp, and outdoor conditions when mounted properly.
Absolutely. With broad NEMA compatibility, IP66 protection, and a compact 87 mm × 75 mm × 145 mm footprint, it fits compact control cabinets in automotive fixtures, packaging lines, and other automated equipment where space, protection, and ease of access matter for pilot devices.
The unit supports CE and UKCA conformity, UL/cUL recognition, and BV/RINA certifications for pilot devices and related applications, ensuring regulatory alignment for global manufacturing and export. Always verify the specific certificate scope in the accompanying datasheets for your region and end-use.
By delivering IP66 protection, durable aluminum construction, and an installation-friendly design, the enclosure reduces ingress-related faults and minimizes maintenance visits. Layered with CAD data and clear documentation, it accelerates design, reduces part variance, and lowers total cost of ownership over the product lifecycle.
