ABB 1SFA170852R3006 Enclosure - IP66 Aluminum
Part Number: 1SFA170852R3006
Quick Summary
ABB 1SFA170852R3006 enclosure provides rugged, weatherproof housing for pilot devices in control cabinets and outdoor installations. Engineers often struggle with protecting sensitive electronics while keeping conduit costs and footprint minimal. This enclosure delivers IP66 protection and broad NEMA compatibility, backed by UL, CE, RoHS, REACH, UKCA, BV and CB certifications to support compliance across global sites. The result is a durable, easy-to-install control cabinet housing that reduces downtime and simplifies panel integration, while maintaining a professional, standards-aligned footprint for industrial automation projects.
Product Information
Extended Description

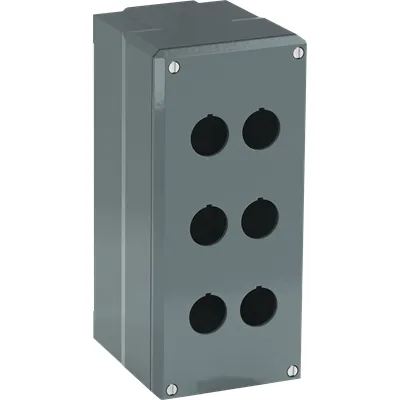

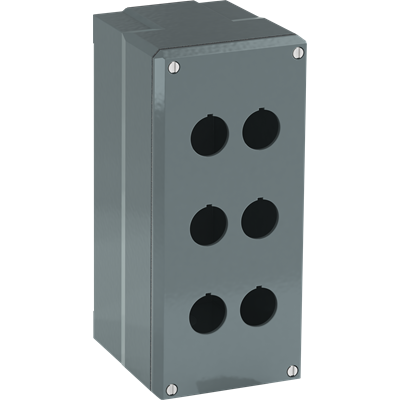

1SFA170852R3006 ABB: 6-HOLE ENCLOSURE NORMAL SOCLE WITH HOLES WITHOUT CONDUIT ENTRY GREY ALUMINUM
Minimum Order Quantity
1 piece
Customs Tariff Number
8538100090
Product Main Type
080SP
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
87 mm
Product Net Depth / Length
100 mm
Product Net Height
195 mm
Product Net Weight
0.705 kg
Color
Grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3 | Type3R | Type3S | Type4 | Type4X
Function
With holes
Housing Material
Aluminum
Sub-Function
Without conduit entry
Sub-Function 2
Normal socle
Suitable For
MP1 | MP2 | MP3 | MP4 | MPM1 | KP6 | MPET3 | MPEP3 | MPEK3 | MPET4 | MPEP4 | MPEK4 | MPMT3MPMP3 | M2SS1 | M2SS2 | M2SS3 | M2SS4 | M2SS5 | M2SS6 | M3SS1 | M3SS2 | M3SS3 | M3SS4 | M3SS5 | M3SS6 | M3SS7 | M3SS8 | M3SSC1 | M3SSC2 | M3SSC3 | M3SSC4 | M3SSC5 | M3SSC6 | M3SSC7 | M3SSC8 | M2SSK1 | M2SSK2 | M2SSK3 | M3SSK1 | M3SSK2 | M3SSK3 | MTS1 | MTS2 | MTS3 | CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6 | P9MC | P9ME | P9ML | P9MM | P9MP | P9MPS | P9MS | P9MSC,P9XER4RAW
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -30 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
Housing IP66
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
BV Certificate
BV-certifcate - Pilot Devices - P9-series
CB Certificate
2CMT2019-005872
cULus Certificate
cULus-certificate, 08-series
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
RINA Certificate
RINA certifcate - Pilot Devices - P9-series
UL Certificate
UL-certifcate - Pilot Devices - P9-series
Package Level 1 Units
bag 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
87 mm
Package Level 1 Height
195 mm
Package Level 1 Gross Weight
0.705 kg
Package Level 1 EAN
7320500520185
eClass
V11.0 : 27371205
E-Number (Finland)
2307466
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
UNSPSC
39121326
Feature → Business Impact → Application: Aluminum enclosure material delivers corrosion resistance and robust mechanical protection, reducing maintenance cycles and extending service life in harsh environments. This supports cost savings and reliability for pilot-device installations in automation panels. Feature → Broad NEMA compatibility and IP66 rating enable versatile use in indoor, outdoor, and wash-down areas, improving installation flexibility and minimizing retrofit costs across facilities. Feature → 6-hole enclosure with normal socle and without conduit entry streamlines wiring and mounting, accelerating commissioning and reducing installation time in control cabinets. Feature → Precise dimensions (87 mm width, 100 mm depth, 195 mm height) and light 0.705 kg weight support straightforward enclosure placement in compact panels while preserving usable space for devices. Feature → RoHS, REACH, UL, CE, UKCA, BV, CB certifications provide regulatory confidence, simplifying procurement and audit readiness for global projects. Feature → Availability of CAD drawings and technical data aids accurate planning, reduces errors, and speeds up vendor qualification for safety-critical systems.
Get a Quick Quote for a ABB 1SFA170852R3006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA170852R3006?
Enquire Now
FAQs
This 6‑hole enclosure is designed for pilot devices and ships without conduit entry, enabling direct mounting within a cabinet. Use the normal socle for stable alignment, mount with standard hardware, and route wiring through existing panel entries. The 87 mm width and 100 mm depth keep the footprint compact while leaving room for device modules and wiring harnesses.
The enclosure carries RoHS and REACH declarations and supports CE, UKCA, UL and CB certifications for global deployment. Additional approvals include BV, RINA, and cULus, reinforcing safety and regulatory alignment across industries and regions.
Ideal for pilot-device enclosures in control cabinets, the unit tolerates outdoor and wash-down environments thanks to IP66 protection and broad NEMA compatibility. It suits MP-series pilot devices and similar modules, enabling reliable protection in harsh environments while preserving easy access for maintenance.
Key specs include 87 mm net width, 100 mm net depth, 195 mm net height, 0.705 kg weight, grey aluminum housing, ambient operation from -30 to 70 °C, and IP66 protection. These ensure durable performance across temperature swings and exposure to dust, water, and incidental impacts.
By reducing conduit costs with a conduit-entry-free design, enabling quick installs with a 6-hole pattern, and offering CAD drawings for accurate planning, the enclosure shortens commissioning times and minimizes field errors. Regulatory compliance and wide device compatibility further reduce audit findings and rework costs.
