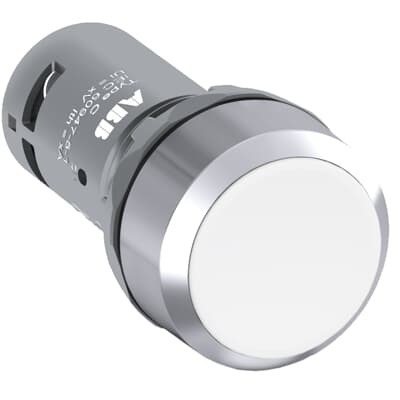

ABB Pushbutton CP1-30W-10 - IP69K Front Protection

Part Number: 1SFA619100R3015
1SFA619100R3015
Manufacturer
ABB
Part number
1SFA619100R3015
Category

Quick Summary

ABB Pushbutton CP1-30W-10 provides compact, momentary actuation for control panels and machine interfaces. Engineers often struggle with installation time and space constraints, and this flush actuator minimizes footprint while simplifying wiring. With front IP69K protection and CE/UKCA declarations, plus CB certification, it supports global deployment and regulatory compliance. This combination also fits into pilot devices and compact control solutions, delivering reliable operation and lower total cost of ownership for multi-site manufacturing environments.

Product Information

Extended Description

1SFA619100R3015 ABB: The CP1-30W-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - White - Non-illuminated - Chrome Metal - 1NO - 1 NO - 0 NC - 300 V This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.033 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Flush
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.334 kg
Package Level 1 EAN
7320500241455
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
The CP1-30W-10 pushbutton is a compact, flush actuator that delivers 1 normally open contact, reducing panel depth and simplifying wiring, which accelerates panel assembly and reduces cabling errors in conveyors and packaging lines. Its front IP69K protection (alongside IP66/IP67 ratings within the family) guards against dust and high-pressure wash-down, enabling reliable service in harsh environments such as food processing and automation cells. Screw clamp terminals support a wide range of conductors, with a tightening torque of 0.8 N·m and compatibility with ferrules and solid wires, which minimizes field maintenance time and termination mistakes. Electrical ratings cover common control circuits up to 300 V, with AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V, ensuring safe operation across typical pilot-device applications. Built for durability, the mechanism offers up to 0.5 million mechanical cycles, reducing replacement costs and downtime while withstanding frequent start-stop sequences. Compliance and certifications—CE, UKCA, CB, RoHS/REACH—support global deployments and regulatory adherence across sites, reinforcing a single, standard pilot-device solution across the enterprise.

Get a Quick Quote for a ABB 1SFA619100R3015

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in ABB 1SFA619100R3015? Enquire Now

FAQs

Wire with solid or ferruled conductors (0.5–1.5 mm²). Insert conductors into the screw clamp terminals and tighten to 0.8 N·m. Ensure a 6 mm stripping length and observe the 1 NO contact configuration. Use ferrules for repeatable terminations and verify correct circuit topology for a momentary control signal. This approach minimizes termination errors and speeds up panel assembly.
For AC-15, it supports up to 2 A at 240 V (and at 220–240 V operation). For DC-13, it supports up to 0.3 A at 24 V and 0.2 A at 125 V. The device is rated for a maximum operational voltage of 300 V with a 6 kV impulse withstand, making it suitable for typical control circuits and pilot-device wiring while maintaining safe insulation and switching margins.
Yes. The front face is rated IP69K (with IP66/IP67 protection also listed for the family), providing excellent dust and wash-down resistance ideal for harsh manufacturing, food processing, and packaging environments. The chrome bezel and non-illuminated flush actuator further contribute to reliability in wet or demanding production cells.
The CP1-30W-10 carries CE and UKCA declarations, plus CB certification for international applicability. Additional RoHS/REACH compliance and other certificates (such as CB and CQC in the datasheet) support multi-region deployments, helping calculators and procurement teams meet regulatory requirements across sites with consistent pilot-device hardware.
With up to 0.5 million mechanical cycles and robust front protection, the device minimizes unscheduled downtime and reduces replacement costs. The screw clamp wiring, compact form factor, and low power loss (around 2.5 W) translate to easier maintenance, faster retrofits, and lower total cost of ownership in high-frequency start-stop applications across automation lines.
