ABB 1SFA619100R3021 Pushbutton - Front IP69K
Part Number: 1SFA619100R3021
Quick Summary
The 1SFA619100R3021 pushbutton provides compact momentary control for industrial panels. Engineers frequently battle limited space, wiring complexity, and harsh environments, making a small, robust device essential. This unit offers front IP66/IP67/IP69K protection and certifications such as RoHS, CE, and UKCA, with UL/CSA compatibility in many regions. In addition to its compact footprint, it delivers durable operation and easy installation, supporting lean procurement and reliable panel performance through a robust, non-illuminated pilot device suitable for demanding automation tasks.
Product Information
Extended Description

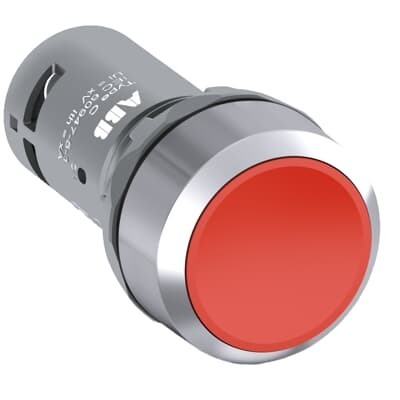

1SFA619100R3021 ABB: The CP1-30R-20 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Red - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Flush
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500241486
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature → Business Impact → Application: The CP1-30R-20 style compact pushbutton with flush actuator and chrome metal bezel saves valuable panel space, enabling denser control layouts while preserving a clean aesthetic; this translates to shorter wiring runs and faster panel assembly. Application: in machine controls and distribution panels where space is at a premium and a non-illuminated, momentary pushbutton is required. Feature → Business Impact → Application: Two normally open contacts (2 NO) and no NC contacts provide straightforward, reliable signaling for simple control circuits, reducing wiring complexity and potential misconnection; this improves fault diagnosis and reduces commissioning time. Application: general control circuits, start/stop functions, and automation sequences. Feature → Business Impact → Application: Front IP66/IP67/IP69K protection plus terminal IP20 isolation delivers robust ingress protection in dusty or wet environments, lowering field fault rates and extending service intervals. Application: harsh manufacturing floors, washdown areas, and outdoor enclosures. Feature → Business Impact → Application: Screw clamp terminals, 0.8 N·m tightening torque, and minimum wire stripping length of 6 mm enable fast, repeatable installations with secure connections; this reduces maintenance calls and improves reliability. Application: panel builders and service technicians performing on-site wiring. Feature → Business Impact → Application: Wide operating temperature range (-25 to +70 °C) and storage conditions (-40 to +85 °C) ensure consistent performance across climate zones, supporting global deployments. Application: control panels in automotive, food & beverage, and process industries where temperature excursions are common. Feature → Business Impact → Application: Comprehensive certifications (CE, UKCA, RoHS, REACH, CB, cURus) and environmental compliance streamline regulatory approvals, accelerate time-to-value, and minimize compliance risk for global projects. Application: projects requiring formal conformity and cross-border sourcing.
Get a Quick Quote for a ABB 1SFA619100R3021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619100R3021?
Enquire Now
FAQs
The 1SFA619100R3021 uses screw clamp terminals, designed for reliable, vibration-resistant connections. It accommodates flexible and solid conductors from 0.5 to 1.5 mm2, with ferrule options supported. In UL/CSA terms, it supports 1x 22–14 AWG or 2x 22–14 AWG conductors, making it versatile for typical control-circuit wiring while simplifying installation and maintenance.
This pushbutton offers front protection rated at IP66, IP67, and IP69K, with terminals rated to IP20. Operational temperature ranges from -25 to +70 °C, and storage tolerances extend from -40 to +85 °C. These specifications ensure reliable performance in dusty, washdown, and varied climate conditions common in industrial environments.
Yes. The front IP69K protection and chrome metal bezel provide excellent ingress resistance against water spray and dust. The compact, non-illuminated design reduces protrusions, improving durability in rugged environments. Combined with robust mounting and 0.8 N·m torque, it remains reliable for washdown areas and high-traffic control panels.
The device carries CE and UKCA declarations, RoHS and REACH compliance, and safety certifications including CB, cURus, CCC, CE, UKCA, and DNV/GL where applicable. WEEE classification is B2B. This broad certification footprint simplifies regulatory approvals for global deployments and helps ensure supply-chain compliance for multinational projects.
Thanks to its compact form, simple two-no-two-zero contact arrangement, and screw-terminal connections, installation is quick and repeatable, cutting panel-time by reducing wiring complexity. The unit's durability, low power loss (max 5 W) and robust enclosure translate to reduced maintenance, predictable lifecycle costs, and fewer field failures over time.
