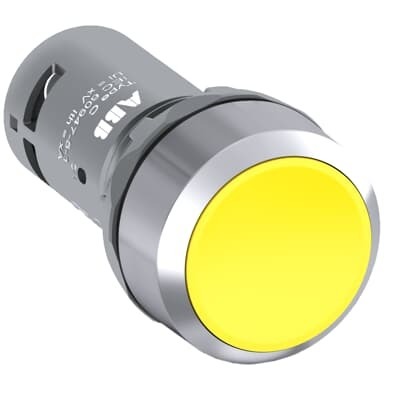

ABB 1SFA619100R3043 Pushbutton - IP66 Front
Part Number: 1SFA619100R3043
Quick Summary
Pushbutton control is a compact device for panel-mounted start/stop actions in industrial machinery. For engineers handling tight spaces and rapid installation, this ABB pushbutton reduces panel footprint and simplifies wiring without compromising reliability. It carries CE and UKCA certifications and RoHS compliance, with front-face protection rated IP66, plus broader environmental ratings to handle dust, water, and temperature variations. As a result, maintenance cycles are predictable and spare parts inventory is streamlined. In addition to its compact footprint, the device integrates well with standard screw clamp terminations and pilot-device ecosystems, delivering value through faster assembly and consistent performance across controlled environments.
Product Information
Extended Description
1SFA619100R3043 ABB: The CP1-30Y-01 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Yellow - Non-illuminated - Chrome Metal - 1NC - 0 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.033 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Flush
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.334 kg
Package Level 1 EAN
7320500241578
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact, flush actuator design. Business Impact: Maximizes panel space and improves ergonomics, enabling tighter control rooms and easier reach for operators. Application: Ideal for compact control panels in machine tooling and packaging lines, where space is at a premium. Long-tail keywords: compact pushbutton, flush actuator, pilot devices. Feature: Chrome metal bezel with yellow color, non-illuminated. Business Impact: Clear visual cue for operation without the need for power for illumination, reducing energy use and heat in enclosed panels. Application: Start/stop circuits in dusty industrial settings where indicators aren’t required. Long-tail keywords: non-illuminated pushbutton, yellow pilot device, chrome bezel.Feature: Momentary function with 1 NC and 0 NO contacts. Business Impact: Safe, fail-safe control for start/stop actions; predictable electrical behavior under load. Application: Short-cycle control of motors and conveyors in automation lines. Long-tail keywords: momentary pushbutton, auxiliary contacts, NC contact.Feature: Wide enclosure compatibility and rugged ratings. Business Impact: Provides dust/water resistance and versatile installation across Type 1/12/13, 3R, 4, 4X enclosures. Application: Harsh manufacturing environments requiring NEMA compatibility and front protection. Long-tail keywords: IP66 front, NEMA compatibility, rugged enclosure.Feature: Screw clamp connections with defined torque and wire range. Business Impact: Fast, reliable wiring with consistent torque at 0.8 N·m, reducing commissioning time and rework. Application: Control panels using flexible ferrules or solid cores across 0.5–1.5 mm². Long-tail keywords: screw terminals, 0.8 N·m torque, wire stripping length 6 mm.Feature: Rich compliance portfolio. Business Impact: Simplifies regulatory alignment with CE, UKCA, CB, cURus, CCC, REACH/ RoHS declarations. Application: Global deployments in Europe and North America with traceable conformity. Long-tail keywords: CE declaration, RoHS status, regulatory compliance.
Get a Quick Quote for a ABB 1SFA619100R3043
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619100R3043?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals compatible with flexible and solid conductors from 0.5 to 1.5 mm². Tightening torque is specified at 0.8 N·m, with a wire stripping length of 6 mm. Ferrule options are supported for reliable, vibration-resistant connections in industrial environments.
Yes. The front of the device is rated IP66, and it is designed for dust and water resistance in demanding industrial settings. It is also compatible with a variety of enclosures (Type 1, 12, 13, 3R, 4, 4X), enhancing its versatility in harsh installations.
The pushbutton carries CE and UKCA declarations, plus CB, cURus, CCC and RoHS/REACH compliance. These certifications support global deployment and simplify regulatory approvals for machines and panels used across Europe, North America, and Asia.
For AC-15 operation at 240 V, it supports up to 2 A. For DC-13 operation at 24 V, it supports up to 0.3 A, and at 125 V up to 0.2 A. The device also lists a rated insulation voltage of 300 V and a rated impulse withstand of 6 kV.
The minimum order quantity is 10 pieces. Packaging details indicate a standard bundle as ‘bag 10 piece’, with a compact footprint suitable for efficient stocking and replenishment on engineering benches and in spares inventories.
