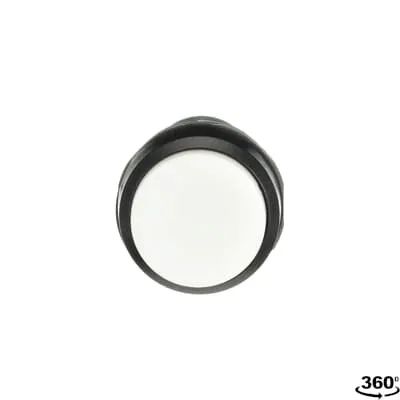

ABB 1SFA619102R1015 Pushbutton - Non-illuminated IP69K
Part Number: 1SFA619102R1015
Quick Summary
ABB 1SFA619102R1015 Pushbutton is a compact momentary control designed for panel-mounted start/stop and control circuits in harsh industrial environments. End users often struggle with lengthy wiring, poor weather resistance, and maintenance overhead in dusty or wash-down areas. With CE and UKCA declarations and RoHS compliance, plus front-protection ratings IP66/IP67/IP69K, it delivers safe operation across demanding applications. As a compact pilot device, it reduces installation time and wiring complexity, delivering reliable control for OEM panels and machine builders.
Product Information
Extended Description
1SFA619102R1015 ABB: The CP3-10W-10 Pushbutton is: Compact - Pushbutton - Momentary - Extended - White - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500242858
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312778
E-Number (Sweden)
3705449
Feature: Compact actuator and 1 NO/0 NC contact configuration. Benefit: Minimizes panel footprint and simplifies wiring, enabling denser control layouts in small panels and distributed I/O applications. Application: Ideal for panel-mounted start/stop controls in compact machines. The extended actuator and non-illuminated bezels improve durability in harsh environments while reducing glare and misoperation. Feature: Screw Clamp terminals with 0.8 N·m tightening torque. Benefit: Secure, quick-term connections that withstand vibration, cut installation time, and simplify field maintenance. Application: Suitable for both flexible and solid conductors (0.5–1.5 mm²) in heavy-duty control cabinets. Feature: Front protection IP66, IP67, IP69K. Benefit: High resistance to dust and water ingress, minimizing downtime in wash-down environments. Application: Critical in food processing, plastics, and outdoor enclosures. Feature: Ui 300 V, Ie AC-15 up to 2 A, Ie DC-13 up to 0.3 A. Benefit: Safe operation within standard industrial control circuits, reducing wiring errors and ensuring regulatory compliance. Application: Compatible with common PLC inputs and starter circuits. Feature: Mechanical durability of 0.5 million cycles. Benefit: Longer service life under frequent push-button use, lowering replacement and maintenance costs. Application: OEM equipment and machine builds demanding robust pilot devices. Feature: RoHS, REACH, CE/UKCA declarations. Benefit: Regulatory compliance and sustainability goals achieved with minimal design adaptation. Application: procurement-ready for global manufacturing and end-user installations.
Get a Quick Quote for a ABB 1SFA619102R1015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R1015?
Enquire Now
FAQs
This pushbutton uses screw clamp terminals with a tightening torque of 0.8 N·m and supports flexible conductors with ferrules (1 x 0.5–1.5 mm², 2 x 0.5–1.5 mm²) or solid conductors (1 x 0.5–1.5 mm², 2 x 0.5–1.5 mm²). It is designed for compact panel layouts, allowing quick field termination and reduced wiring complexity, which translates to shorter installation times and fewer connection errors.
The device features front protection rated IP66, IP67, and IP69K, with terminals protected to IP20. It operates from -25 to +70 °C (storage to -40 to +85 °C) and is designed for dusty and wash-down environments, reducing maintenance and increasing MTBF in demanding facilities.
Yes. The pushbutton offers mechanical durability rated at 0.5 million cycles, ensuring reliable actuation in frequent-start/stop scenarios typical of conveyors, presses, and packaging lines. Its compact, extended actuator maintains consistent actuation force and feedback over long service life.
The device includes CE and UKCA declarations, RoHS compliance, and REACH considerations. Additional certifications in the data set include CB, cURus, CCC, EAC, DNV GL, and others, supporting global procurement and regulatory conformity for OEMs and integrators.
Its compact form factor, single NO contact, and screw-terminal wiring reduce panel footprint and installation time. The 0.8 N·m torque and robust IP-rated front make it reliable in harsh environments, lowering maintenance costs and extending service intervals, which translates to lower total cost of ownership for panel upgrades and new OEM equipment.
