ABB CP3-11L-10 Pushbutton - 24 V LED IP69K Front
Part Number: 1SFA619102R1114
Quick Summary
The ABB CP3-11L-10 Pushbutton is a compact, momentary control device designed for fast, reliable start-stop actions in industrial automation. In crowded control panels and harsh environments, installers struggle with space, wiring, and achieving rugged protection. This device integrates CE and UKCA declarations, RoHS compliance, and CB/UL-type certifications to support global deployments. By combining compact footprint with illuminated operation and strong ingress protection, it enables faster installs and ongoing reliability. For engineers, this means reduced wiring time, fewer enclosure modifications, and standardized pilot devices across production lines. Procurement benefits include predictable lead times, bulk pricing consistency, and audit-ready documentation for CE, UKCA, RoHS and CB certifications.
Product Information
Extended Description

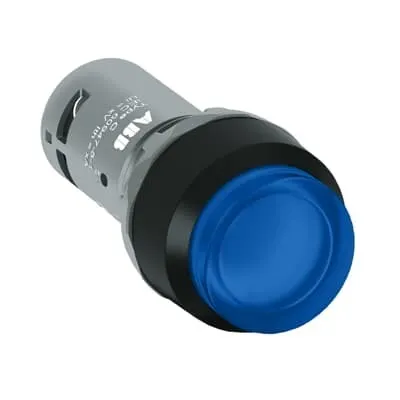

1SFA619102R1114 ABB: The CP3-11L-10 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Blue - Illuminated - Black Plastic - 1NO - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500473986
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature → Business Impact → Application: The CP3-11L-10 features an illuminated blue pushbutton with 1 normally open NO contact and no normally closed NC contact, enabling clear status indication while simplifying wiring in control circuits. This configuration reduces wiring complexity and panel space, delivering faster commissioning for machine starts and resets in packaging lines and assembly cells. Feature → Business Impact → Application: LED 24V illumination provides reliable visibility in low-light environments, improving operator accuracy and reducing misoperation during start-stop sequences in automotive and food & beverage industries. Feature → Business Impact → Application: Screw Clamp connections allow flexible conductor sizes (0.5–1.5 mm² ferrule or solid), enabling quick field installation and secure terminations in washdown environments, which translates to less rework and maintenance time. Feature → Business Impact → Application: Front protection (IP66/67/69K) combined with IP20 terminals delivers robust ingress protection and simple cleaning in hygienic and high-dust environments, supporting compliance in process and packaging environments. Feature → Business Impact → Application: Tightening torque of 0.8 N·m and a maximum power loss of 2.5 W minimize heat buildup and ensure dependable operation in dense control cabinets, reducing thermal failures in high-density panel designs. Feature → Business Impact → Application: Mechanical durability rated at 0.5 million cycles ensures long service life in frequent push-button usage scenarios, lowering total cost of ownership in continuous production lines. Feature → Business Impact → Application: Comprehensive certifications (CE, UKCA, RoHS, CB) and global declarations streamline international procurement, enabling multi-site deployments without requalification, which reduces project risk and accelerates rollout across manufacturing zones.
