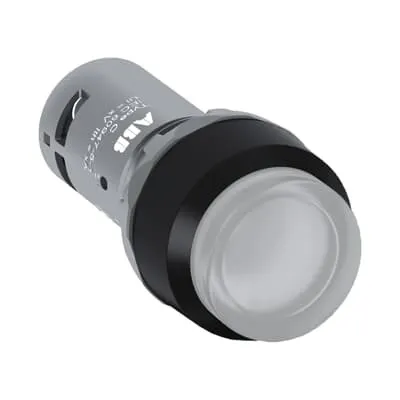

ABB 1SFA619102R1118 Pushbutton - LED 24V IP69K
Part Number: 1SFA619102R1118
Quick Summary
ABB 1SFA619102R1118 Pushbutton is a compact illuminated control device designed for industrial control panels and automation cabinets. This solution addresses installation time and space constraints common in modern panel design, delivering a reliable, ready-to-wire momentary pushbutton. It carries robust certifications that matter in the field, including CE, UKCA, RoHS, and UL/CSA compatibility, with front protection up to IP69K for aggressive wash-down environments. Built for safety and efficiency, it also aligns with ABB's compact pilot device philosophy to streamline maintenance and reduce total cost of ownership. For integrators and OEMs, this pushbutton combines compact form with dependable performance across 24 V AC/DC circuits and standard industrial interfaces.
Product Information
Extended Description
1SFA619102R1118 ABB: The CP3-11C-10 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Clear - Illuminated - Black Plastic - 1NO - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.025 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Extended
Bezel Material
Black Plastic
Illumination
Illuminated
Lamp Type
LED 24V AC/DC
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz | Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Maximum 300 V | Supply Circuit 24 V AC/DC
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.254 kg
Package Level 1 EAN
7320500473993
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
The compact pushbutton delivers efficient panel integration and predictable operation, reducing wiring time and minimizing enclosure footprint. Feature → Business Impact → Application: Illumination provides immediate status indication in low-light environments, improving operator response times and reducing error rates on packaging lines or assembly stations. Feature → Business Impact → Application: 24 V LED and 1NO/0NC configuration supports common PLC inputs, enabling reliable control logic without additional components. Feature → Business Impact → Application: Screw Clamp terminals and documented tightening torque of 0.8 N·m simplify field wiring and ensure robust connections in vibration-prone machinery. Feature → Business Impact → Application: Front protection IP66/IP67/IP69K offers superior wash-down resistance and dust exclusion, increasing uptime in harsh industrial environments like food processing or automotive manufacturing. Feature → Business Impact → Application: Compact dimensions (0.03 m width/height, 0.06 m depth) enable dense panel layouts and retrofits in legacy equipment. Feature → Business Impact → Application: Mechanical durability rated at 0.5 million cycles reduces replacement risk in high-use applications, supporting longer service intervals and lower maintenance costs. Feature → Business Impact → Application: Wide operating temperature range (-25 to +70 °C) and 300 V insulation support reliable operation in diverse environments, from cold facilities to hot production floors. Feature → Business Impact → Application: Compliance with RoHS, REACH, CB/UL/CSA, CE/UKCA ensures regulatory alignment across global supply chains, safeguarding certifications during audits and customer qualification. Feature → Business Impact → Application: MOQ of 10 pieces and standard packaging simplify procurement planning for OEMs and panel builders while enabling scalable deployment across multiple machines.
Get a Quick Quote for a ABB 1SFA619102R1118
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R1118?
Enquire Now
FAQs
Yes. This pushbutton uses screw clamp terminals with a standardized tightening torque of 0.8 N·m and supports flexible or solid conductors in the 0.5–1.5 mm² range, designed for 24 V AC/DC control circuits and 1NO/0NC configurations.
It offers 0.5 million mechanical cycles and supports 24 V DC current up to 0.3 A (Ie) and 240 V AC up to 2 A (Ie) with a maximum insulation voltage of 300 V and a rated impulse withstand voltage of 6 kV, suitable for PLC inputs and automation tasks.
Absolutely. The front protection includes IP69K with compatibility to IP66/IP67, making it well-suited for wash-down and dusty environments typical in food processing, packaging, and automotive assembly lines.
The device complies with RoHS, REACH, and TSCA considerations, and holds CE, UKCA, CB, cURus, and EAC certifications, ensuring regulatory acceptance across Europe, the UK, North America, and beyond.
Its compact form factor, quick-connect screw terminals, and robust front protection reduce wiring time and maintenance frequency. The 0.03 m x 0.03 m face area and 0.06 m depth enable tight panel layouts, while the 0.5 million cycle durability lowers replacement and downtime costs.
