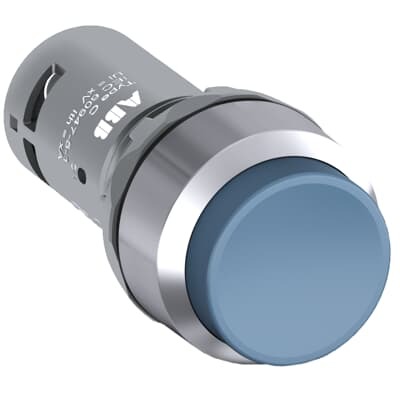

ABB 1SFA619102R3024 Pushbutton - IP66/IP69K Front Protection
Part Number: 1SFA619102R3024
Quick Summary
Pushbutton ABB 1SFA619102R3024 is a compact momentary control input for industrial panels. Engineered to tolerate dust and water exposure, it minimizes downtime in challenging environments. CE and UKCA declarations, along with front protection IP66/IP67/IP69K, support global compliance and rugged performance. As part of ABB's compact range, it accelerates installation and reduces wiring complexity, delivering measurable cost savings for panel builders and end users. With 2 NO contacts and a chrome bezel, it provides reliable actuation in space-constrained enclosures. Design and procurement teams benefit from global certifications and the option to specify a compatible compact pilot device family. This combination drives faster project schedules and lower installation risk.
Product Information
Extended Description
1SFA619102R3024 ABB: The CP3-30L-20 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Blue - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500243619
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact form factor with extended actuator and chrome bezel. Benefit: saves panel depth and simplifies mounting, reducing misalignment risk. Application: ideal for tight control panels, machine dashboards, and packaging lines where reliable actuation is critical. Feature: Two normally open contacts (2 NO) and no normally closed (0 NC) contact arrangement. Benefit: supports standard start/stop circuits and easy wiring for simple control loops. Application: suitable for basic motor control and process signaling in conveyors and automation cells. Feature: 300 V rated operation with AC-15/DC-13 compatibility. Benefit: enables flexible use across low- and medium-voltage control circuits, reducing part variety. Application: panel assemblies requiring both AC and DC control loads. Feature: Screw clamp terminals with ferrule-friendly wiring (0.5–1.5 mm²). Benefit: secure terminations with quick field wiring, lowering termination errors. Application: control cabinet terminations and on-site panel wiring. Feature: Enclosure protection including Front IP66/IP67/IP69K and Terminals IP20. Benefit: robust washdown and dust resistance, minimizing maintenance cycles. Application: washdown zones in food & beverage, packaging lines, and automotive assembly. Feature: Mechanical durability rated at 0.5 million cycles and modest power loss (maximum 5 W). Benefit: long service life with predictable maintenance intervals and lower ongoing energy use. Application: high-cycle production environments and continuous operation lines. Feature: Wide certifications set including CE, UKCA, CB, CQC, UL/CSA compatibility, and ETIM classification EC001028. Benefit: simplifies procurement across regions and accelerates qualification. Application: multinational facilities needing standardized pilot devices across sites. Feature: 0.03 m net width/height and 0.06 m depth with 0.8 N·m tightening torque. Benefit: compact footprint supports dense panel layouts and repeatable installations. Application: compact control stations and space-constrained control panels.
Get a Quick Quote for a ABB 1SFA619102R3024
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R3024?
Enquire Now
FAQs
The pushbutton uses screw clamp terminals designed for 0.5–1.5 mm² conductors. Tighten to 0.8 N·m and ensure correct orientation of the chrome bezel. The compact form factor fits tight spaces, reducing panel depth requirements and simplifying alignment during installation.
It is rated for up to 300 V and supports AC-15 (up to 2 A at 240 V) and DC-13 (up to 0.3 A at 24 V). With 2 NO contacts and 0 NC, it is suitable for standard start/stop and signaling circuits in many industrial machines.
Yes. Front protection is IP66/IP67/IP69K, with terminals rated IP20. This combination provides excellent resistance to dust and washdown, making it ideal for packaging lines, food & beverage, and similar rugged environments.
The device carries CE and UKCA declarations, plus CB, CQC, UL/CSA compatibility, EAC, and ETIM EC001028 classification. These certifications support regulatory compliance across regions and streamline supplier qualification for multinational facilities.
With a mechanical durability of 0.5 million cycles and a maximum power loss of 5 W, the pushbutton offers long service life and stable energy use. This translates to reduced maintenance frequency and lower operating costs on high-cycle production lines.
