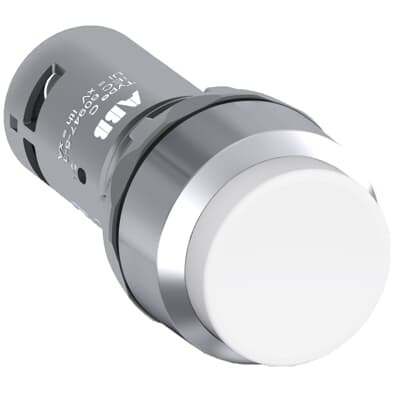

ABB 1SFA619102R3025 Pushbutton - IP66/IP67/IP69K
Part Number: 1SFA619102R3025
Quick Summary
ABB 1SFA619102R3025 Pushbutton is a compact momentary control device ideal for machine panels. Engineers often struggle with lengthy installation times, wiring complexity, and sealing against dust and water ingress. It carries CE and UKCA compliance with RoHS and offers front IP66/67/69K protection plus 6 kV impulse withstand. Designed for quick mounting and reliable operation, it reduces overall installation labor while enabling scalable, safe automation. The 2NO, non-illuminated chrome bezel compact pushbutton fits ABB's Pilot Devices ecosystem and supports durable, maintenance-friendly control across industrial environments.
Product Information
Extended Description
1SFA619102R3025 ABB: The CP3-30W-20 Pushbutton is: Compact - Pushbutton - Momentary - Extended - White - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500243626
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact, chrome-bezel pushbutton with extended actuator. Business Impact: Saves panel space and provides a robust, visually clear control point that lasts in confined cabinets. Application: Suitable for control panels in packaging lines and conveyor systems. Feature: 2 normally open contacts (2NO) with 0 normally closed (0NC). Business Impact: Enables simple wiring for typical start/stop circuits while minimizing fault paths. Application: Motor control and start buttons in general automation tasks. Feature: Rated up to 300 V and AC-15 up to 2 A. Business Impact: Supports standard control circuits with reliable performance and reduced overheating risk. Application: 24 to 240 V control networks in machine tooling. Feature: Front IP66/IP67/IP69K protection. Business Impact: Ensures ingress protection in wash-down or dusty environments, reducing maintenance and downtime. Application: Food & beverage, packaging, and automotive assembly lines. Feature: Screw clamp terminals with 0.8 N·m tightening torque and 6 mm wire stripping. Business Impact: simplifies field wiring, improves termination reliability, and speeds installation. Application: Field installs on control panels with diverse conductor sizes. Feature: Mechanical durability rated at 0.5 million cycles. Business Impact: Extends service life in high-usage applications, lowering replacement costs. Application: Continuous operation in production lines and safety interlocks. Feature: Non-illuminated, white actuator with chrome bezel. Business Impact: Clear visual indication without power draw, reducing energy use and glare in bright environments. Application: Standalone or integrated pilot devices in compact ranges. Industry context: This compact pushbutton aligns with ABB’s Pilot Devices range, delivering a reliable, standards-based solution for modern automation projects while minimizing panel real estate and installation time.
