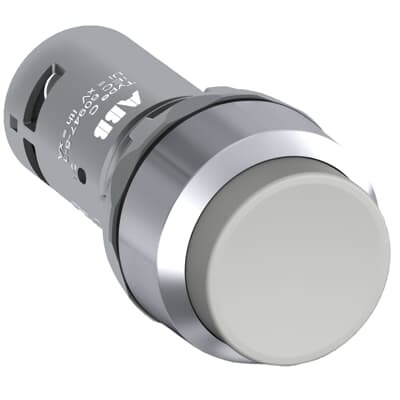

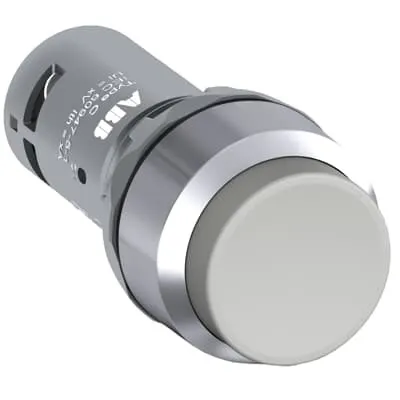

ABB CP3-30U-20 Pushbutton - IP66/IP67/IP69K Front
Part Number: 1SFA619102R3027
Quick Summary
The ABB CP3-30U-20 Pushbutton is a compact momentary control device designed for industrial panels and machine control. Deploying this pushbutton helps reduce installation time and cabinet space, addressing common challenges of crowded controls and wiring complexity. It carries CE, UKCA, CB, and UL/CSA certifications, ensuring global compliance for multinational projects, while its rugged front protection (IP66/IP67/IP69K) keeps assemblies reliable in washdown and dusty environments. Designed for ABB's compact pilot-device family, it supports streamlined procurement and standardization, delivering consistent performance across harsh conditions. By choosing this pushbutton, teams benefit from faster field installation, reduced maintenance, and a clear path to scalable automation in diverse production lines.
Product Information
Extended Description
1SFA619102R3027 ABB: The CP3-30U-20 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Grey - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Grey
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500243640
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature → Business Impact → Application: The CP3-30U-20’s ultra-compact footprint (0.03 m W x 0.03 m H, 0.06 m D) and chrome metal bezel optimize panel aesthetics and density, enabling tighter control layouts in crowded machines. This translates to faster panel layouts and lower enclosure depth, especially in retrofits or retrofits of legacy equipment. Feature → Business Impact → Application: With 2 normally open contacts (2 NO) and no NC contacts, the device simplifies control circuits, reducing wiring complexity and potential fault paths in start/stop and safety interlock circuits. Application: Ideal for conveyor lines, presses, and packaging machines where space is at a premium. Feature → Business Impact → Application: Front protection rated IP66/IP67/IP69K and a wide operating range (-25 to +70 °C) provide rugged performance in washdown and high-dust environments, reducing downtime and service calls in food, beverage, and chemical processing. Application: Harsh manufacturing environments requiring reliable, wipe-down capable control points. Feature → Business Impact → Application: Screw clamp terminals and a 0.8 N·m tightening torque enable secure wiring with ferrules or insulated ferrules, streamlining field installation and reducing contact failures. Application: Durable pilot devices for panel builders seeking quick, repeatable assemblies. Feature → Business Impact → Application: Rated operational currents (AC-15 up to 2 A at 240 V; DC-13 up to 0.3 A at 24 V) ensure safe operation in typical control circuits, lowering the risk of nuisance tripping and extending component life. Application: Start/stop, signal affirmations, and control sequencing in low- current control loops. Feature → Business Impact → Application: Mechanical durability of 0.5 million cycles minimizes replacement costs and maintenance intervals, improving total cost of ownership in high-cycle applications such as packaging or material handling. Application: Repetitive push-button actuation in high-use lines. Feature → Business Impact → Application: Non-illuminated operation reduces power consumption and simplifies compliance in environments where indication is provided elsewhere, while maintaining clear tactile feedback for operators. Application: Compact pilot devices in safety circuits and operator panels.
