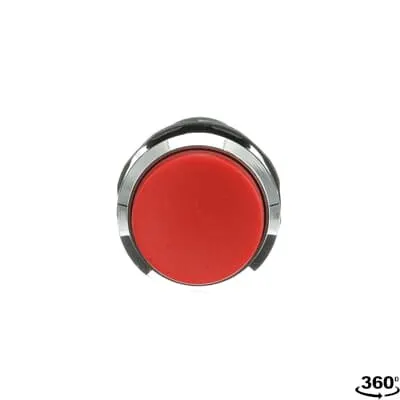

ABB 1SFA619102R3041 Pushbutton - 300 V IP66
Part Number: 1SFA619102R3041
Quick Summary
ABB Pushbutton 1SFA619102R3041 is a compact momentary control device for machine panels. Engineers face long installation times and sealing challenges; this pushbutton streamlines wiring and resilience in harsh environments. It carries CE, UKCA, and CB/EAC certifications, with front IP66/IP67/IP69K protection to support global regulatory compliance. Perfect as a pilot device in compact control circuits, it reduces footprint and simplifies installation, wiring, and maintenance. The robust chrome bezel, red actuator, and screw-terminal connection deliver durable operation in demanding facilities while meeting RoHS/REACH requirements, helping you improve installation quality and reduce lifecycle costs. With a 0.8 N·m tightening torque and 0.033 kg weight, it is easy to fit and service in confined spaces.
Product Information
Extended Description
1SFA619102R3041 ABB: The CP3-30R-01 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Red - Non-illuminated - Chrome Metal - 1NC - 0 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.033 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.334 kg
Package Level 1 EAN
7320500243657
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact, extended actuator design provides a smaller panel footprint while maintaining a clear, accessible operator interface. Business Impact: Frees cabinet space and reduces enclosure depth, lowering overall installation costs. Application: Marine- or machinery-control panels where space is at a premium and quick operator access is critical. Feature: 1NC and 0 NO auxiliary contacts simplify control logic and wiring. Business Impact: Reduces wiring complexity and potential mis-wiring, improving reliability and ease of maintenance. Application: Start/stop and momentary control in conveyor lines and packaging machines. Feature: Red, non-illuminated actuator with chrome metal bezel offers high-contrast visibility without power draw. Business Impact: Clear operator signaling in bright environments and power-efficient operation. Application: Manual start/stop in manufacturing lines and process controls. Feature: Front protection rated IP66/IP67/IP69K with terminals IP20 ensures rugged ingress protection. Business Impact: Sustains performance in washdown and dusty environments, reducing downtime. Application: Food & beverage, automotive assembly, and outdoor enclosures. Feature: Screw clamp terminals and 0.8 N·m tightening torque enable secure, repeatable connections. Business Impact: Reliable wiring under vibration and thermal cycling, minimizing rework. Application: New installations and retrofit projects with mixed conductor types. Feature: Mechanical durability of 0.5 million cycles lowers replacement frequency and maintenance costs. Business Impact: Longer service life and lower total cost of ownership. Application: High-cycle control circuits in process lines. Feature: RoHS and REACH compliance with multiple certifications (CE, UKCA, CB, EAC) ensures regulatory readiness. Business Impact: Streamlined procurement across regions and simplified compliance audits. Application: Global deployments of pilot devices in control cabinets.
Get a Quick Quote for a ABB 1SFA619102R3041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R3041?
Enquire Now
FAQs
To install, mount the pushbutton in the panel cutout and secure with its chrome bezel. Wire using screw clamp terminals with a stripping length of 6 mm; tighten to 0.8 N·m. Accepts flexible or solid conductors from 0.5 to 1.5 mm² and supports UL/CSA wiring up to 2x 22–14 AWG. Compatible with standard control circuits and PLC inputs.
Rated operational voltage is up to 300 V. AC-15 current ratings are 2 A at 240 V or 220–240 V. DC-13 ratings are 0.3 A at 24 V and 0.2 A at 125 V. This makes the device suitable for light-to-moderate load control in typical automation circuits while supporting safe startup and stop actions.
Yes. The front is rated IP66/IP67/IP69K, with terminals protected to IP20, enabling reliable operation in washdown and dusty environments. It’s ideal for food processing, machine tools, and outdoor enclosures where ingress protection and durability are critical.
The device carries CE, UKCA, CB, and EAC certifications, plus DoC declarations. These approvals support global markets, simplify supplier audits, and facilitate regulatory compliance across regions for panel assemblies and pilot devices.
Mechanical durability is rated at 0.5 million cycles, reducing replacement frequency and maintenance costs. The device uses screw terminals for reliable wiring, and its low power loss (maximum 2.5 W) minimizes heat in the control panel, contributing to lower total cost of ownership.
