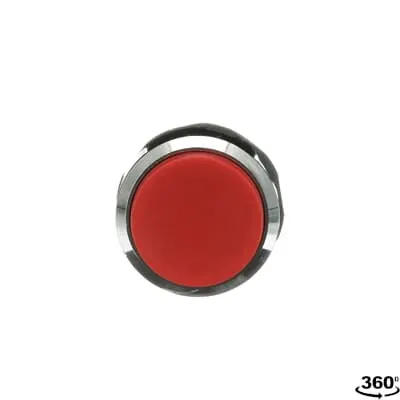

ABB 1SFA619102R3071 Pushbutton - IP69K Front Protection
Part Number: 1SFA619102R3071
Quick Summary
CP3-30R-11 Pushbutton is a compact momentary control device designed for machine control panels in industrial automation. Engineers often face cramped spaces and lengthy wiring tasks that drive installation costs up. With IP66/IP67/IP69K front protection and CE/UKCA conformity, this ABB pilot device delivers rugged reliability and regulatory peace of mind. The compact form factor, screw-terminal connections, and RoHS/REACH compliance streamline procurement and reduce field service time, delivering measurable cost savings for panel builders and OEMs. Its 1NO+1NC configuration supports flexible interlocking and status signaling in rugged environments.
Product Information
Extended Description
1SFA619102R3071 ABB: The CP3-30R-11 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Red - Non-illuminated - Chrome Metal - 1NO+1NC - 1 NO - 1 NC - 300 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.06 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Extended
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.125 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.05 m
Package Level 1 Gross Weight
0.364 kg
Package Level 1 EAN
7320500243794
Object Classification Code
S
ETIM 6
EC001028 - Push button, complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: The CP3-30R-11 provides a 1NO+1NC contact arrangement in a compact chrome bezel. Business Impact: It enables straightforward control logic with a small footprint, reducing panel size and wiring complexity. Application: Ideal for tight control panels in conveyors, packaging lines, and machine tools. Feature: Momentary operation with a defined reset when released. Business Impact: Improves safety, reduces false positives, and simplifies logic for start/stop sequences. Application: Start/stop signaling and interlock schemes in automated production lines. Feature: Extended actuator with a chrome bezel. Business Impact: Delivers durable, tactile feedback in dusty or washdown environments, lowering misoperation risk. Application: Operator interfaces on rugged equipment and process equipment. Feature: Front protection rated IP66/IP67/IP69K. Business Impact: Enables reliable operation in high-dust and high-pressure washdown environments, reducing maintenance downtime. Application: Food processing, beverage packaging, and outdoor machinery. Feature: Screw-clamp terminals for versatile wiring. Business Impact: Fast, vibration-resistant terminations compatible with ferrule and solid wire, shortening installation time. Application: Panel builds and retrofit projects where quick, secure wiring matters. Feature: Low power draw and robust electrical ratings. Business Impact: Supports energy-efficient control circuits with safe operating margins; reduces heat and improves reliability. Application: PLC input circuits and low-power automation modules.
Get a Quick Quote for a ABB 1SFA619102R3071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619102R3071?
Enquire Now
FAQs
The CP3-30R-11 uses screw clamp terminals compatible with flexible or solid conductors. Use ferrules in the range 0.5–1.5 mm² for best reliability. Tighten to 0.8 N·m and verify secure, vibration-resistant connections to ensure consistent actuation signals and long-term reliability in automated lines.
For AC-15 the device supports up to 2 A at 240 V, and for DC-13 it supports 0.3 A at 24 V (0.2 A at 125 V). These ratings make the pushbutton suitable for pilot control circuits and PLC input interfaces, while maintaining a comfortable margin near the maximum 300 V insulation rating.
Yes. The front of the unit offers IP66/IP67/IP69K protection, providing robust resistance to dust, water jets, and high-pressure cleaning. This makes it well-suited for food processing, packaging lines, and outdoor or washdown-adjacent automation applications.
The pushbutton carries CE and UKCA declarations, RoHS and REACH compliance, and several cross-certifications (CB, EAC, CQC, UL/CSA-related declarations where applicable). It also meets relevant EN/NEMA enclosure and safety standards, supporting regulatory compliance across multiple markets.
ABB’s compact pushbuttons reduce panel footprint and installation time thanks to a simplified wiring scheme and quick-connect terminals. With rugged IP-rated protection and long mechanical life, maintenance windows are minimized, delivering faster time-to-production, higher line uptime, and a lower total cost of ownership for OEMs and system integrators.
